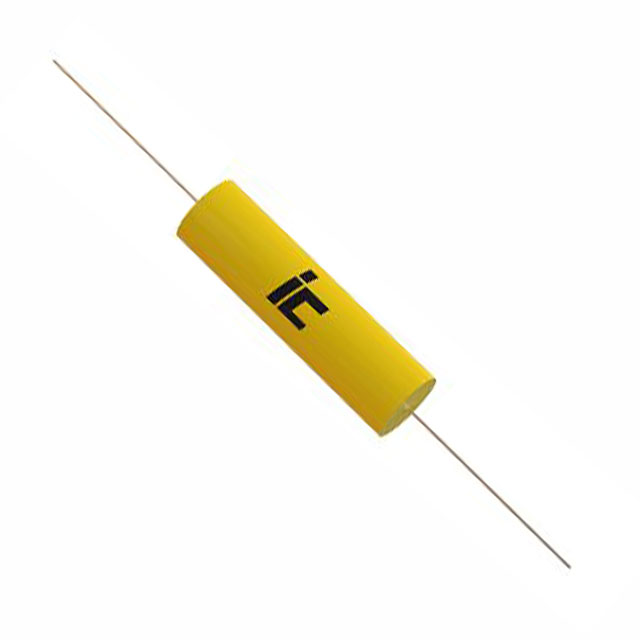

103MWS103KT
ObsoleteCornell Dubilier Knowles
CAP FILM 10000PF 10KVDC AXIAL
103MWS103KT
ObsoleteCornell Dubilier Knowles
CAP FILM 10000PF 10KVDC AXIAL
Description
General part information
103MWS103KT
10000 pF Film Capacitor 1200V (1.2kV) 10000V (10kV) Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 103MWS103KT |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 pF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 1.299 in |
| Size / Dimension Length | 2.48 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 1.2 kVAC |
| Voltage Rating - DC | 10000 V |
