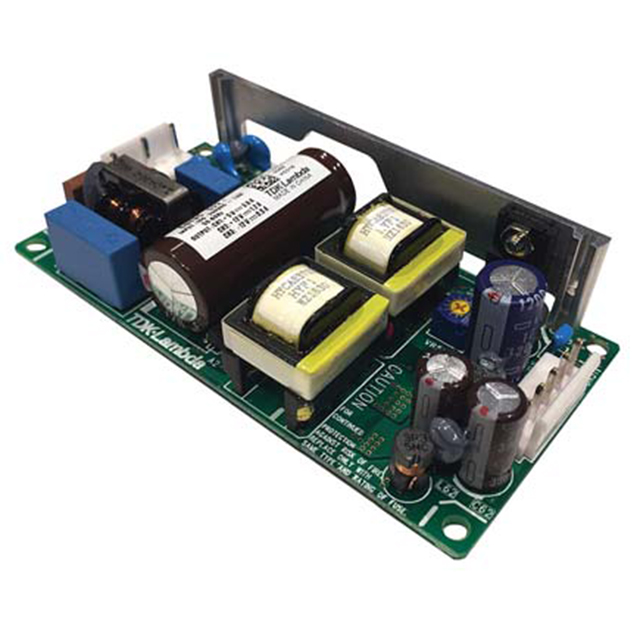

CUT35-5FF
ActiveTDK-LAMBDA
AC/DC CONVERTER 5V +/-15V 35W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUT35-5FF
ActiveTDK-LAMBDA
AC/DC CONVERTER 5V +/-15V 35W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUT35-5FF |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output 1 | 3 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 650 mA |
| Features | Universal Input, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 35 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 27 mm |
| Size / Dimension [z] | 1.06 in |
| Type | Open Frame |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.31 | |
| 10 | $ 40.44 | |||
| 25 | $ 39.88 | |||
| 50 | $ 38.77 | |||
Description
General part information
CUT35-5FF
Open Frame AC DC Converters 3 Output 5V 15V -15V 85 ~ 265 VAC Input
