KMF1.1123.11
ActiveSCHURTER Inc.

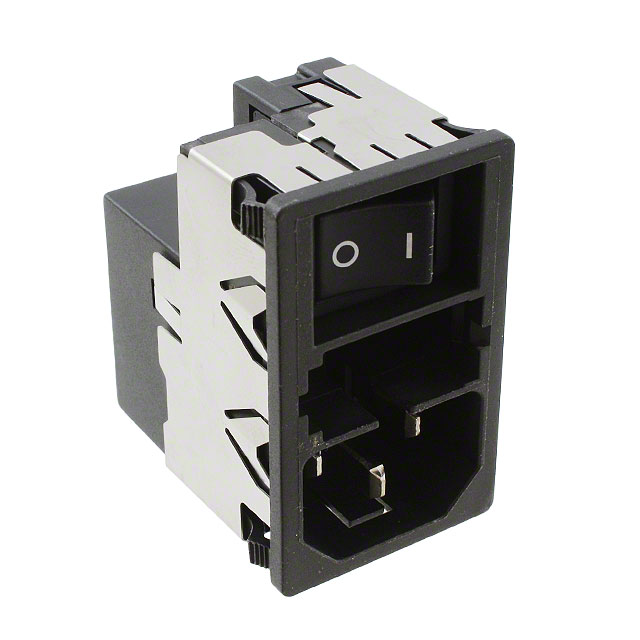

PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
KMF1.1123.11
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KMF1.1123.11 | KMF1.1123 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, ENEC, cULus | CCC, ENEC, cULus |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Current Rating - Filter | 2 A | 2 A |
| Features | Shielded | Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.8 mm | 28.8 mm |
| Panel Cutout Dimensions [y] | 47.8 mm | 47.8 mm |
| Panel Thickness [Max] | 2.5 mm | 2.5 mm |
| Panel Thickness [Max] | 0.098 in | 0.098 in |
| Panel Thickness [Min] | 1 mm | 1 mm |
| Panel Thickness [Min] | 0.039 in | 0.039 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KMF1.1123 Series
KMF PWR ENTRY MOD W/ FLTR PNL QC
| Part | Termination | Termination | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Features | Mounting Type | Connector Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Material Flammability Rating | Switch Features | Ingress Protection | Fuse Holder, Drawer | Connector Type | Current Rating - Filter | Accomodates a Fuse | Approval Agency | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KMF1.1123.1101 | 0.189 ", 4.8 mm | Quick Connect | 2.5 mm | 1 mm | 0.098 in | 0.039 in | Shielded | Panel Mount, Snap-In | ||||||||||||||
SCHURTER Inc. KMF1.1123.11 | 0.189 ", 4.8 mm | Quick Connect | 2.5 mm | 1 mm | 0.098 in | 0.039 in | Shielded | Panel Mount, Snap-In | IEC 320-C14 | 47.8 mm | 28.8 mm | UL94 V-0 | Switch On-Off | IP40 | Drawer Sold Separate | Receptacle, Male Blades - Module | 2 A | CCC, cULus, ENEC | 10 A | 250 VAC | Filtered (EMI, RFI) - Commercial, Medical | |
SCHURTER Inc. KMF1.1123.1102 | 0.189 ", 4.8 mm | Quick Connect | 2.5 mm | 1 mm | 0.098 in | 0.039 in | Shielded | Panel Mount, Snap-In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.65 | |
Description
General part information
KMF1.1123 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
