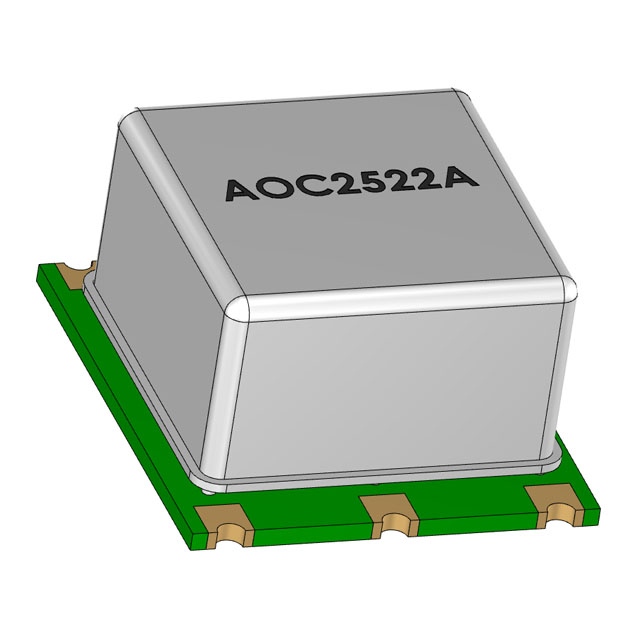

AOC2522AVAGC-12.8000
ActiveAbracon LLC
XTAL OSC OCXO 12.8MHZ CMOS
AOC2522AVAGC-12.8000
ActiveAbracon LLC
XTAL OSC OCXO 12.8MHZ CMOS
Description
General part information
AOC2522AVAGC-12.8000
12.8 MHz VCOCXO CMOS Oscillator 3.3V 5-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | AOC2522AVAGC-12.8000 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 12.8 MHz |
| Frequency Stability | 30 ppb |
| Height - Seated (Max) | 0.52 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.866 in |
| Type | VCOCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
