63170-1
ActiveTE Connectivity AMP Connectors

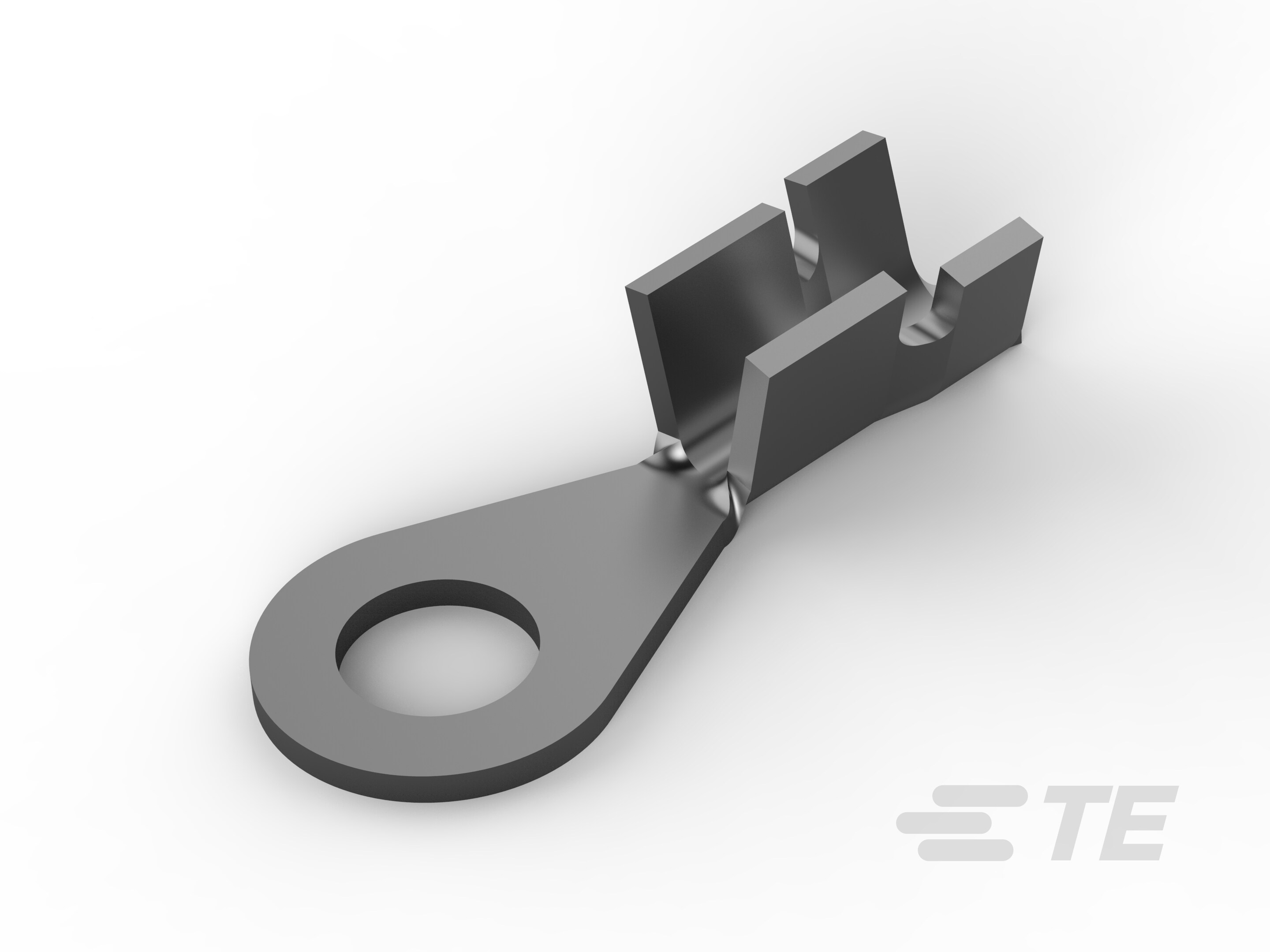

RING TERMINAL (RT) 18-14 AWG TPBR
63170-1
ActiveTE Connectivity AMP Connectors
RING TERMINAL (RT) 18-14 AWG TPBR
Description
General part information
63170-1
Closed Ring Tongue Terminal, 18 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 63170-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.768 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M4 Stud, M4 |
| Terminal Type | Oval |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.315 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
