M24308/24-27Z

Active

Amphenol Positronic

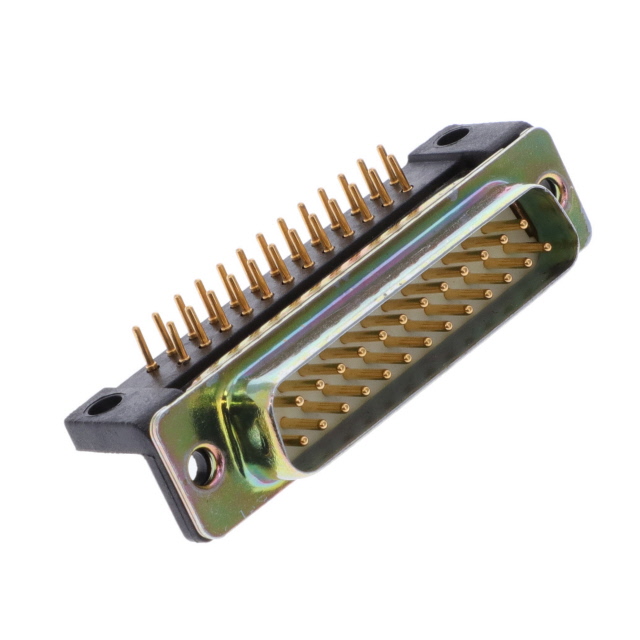

DSUB CONN,R/ANGLE, PLUG, ZINC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/24-27Z

Active

Amphenol Positronic

DSUB CONN,R/ANGLE, PLUG, ZINC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.18
		10	$ 29.06
		25	$ 27.80
		50	$ 26.91
		100	$ 26.01
		250	$ 24.57
	Tray	1	$ 50.69
		10	$ 39.26
		25	$ 35.63
		40	$ 33.94
		80	$ 31.65
		230	$ 28.58

Description

General part information

M24308/24 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/24-27Z	M24308/24 Series

Backset Spacing	0.283 in	0.283 in
Backset Spacing	7.2 mm	7.2 mm
Color	Natural	Natural
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	7.5 A	7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Features	Mounting Brackets	Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	-	15 - 50
Number of Rows	2	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc	Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	-	2 - 5
Shell Size, Connector Layout [custom]	DB, B	DB, B
Shell Size, Connector Layout [custom]	3	3
Termination	Solder	Solder
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	20 AWG	20 AWG

M24308/24 Series

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Part	Features	Termination	Shell Material, Finish	Contact Finish	Contact Material	Connector Type	Current Rating (Amps)	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Material Flammability Rating	Mounting Type	Flange Feature	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Positions	Connector Style	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol Positronic M24308/24-32F	Mounting Brackets	Solder	Steel, Yellow Cadmium Plated	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	2	-55 °C	125 °C	2	0.283 in	7.2 mm	UL94 V-0	Panel Mount, Right Angle, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural	15	D-Sub	Polyester, Glass Filled
Amphenol Positronic M24308/24-5F		Solder	Steel, Yellow Cadmium Plated	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	3	-55 °C	125 °C	5			UL94 V-0	Panel Mount, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural	50	D-Sub	Polyester, Glass Filled
Amphenol Positronic M24308/24-27Z	Mounting Brackets	Solder	Steel, Yellow Chromate Plated Zinc	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	2	-55 °C	125 °C		0.283 in	7.2 mm	UL94 V-0	Panel Mount, Right Angle, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural		D-Sub	Polyester, Glass Filled	B, DB	3
Amphenol Positronic M24308/24-35F	Mounting Brackets	Solder	Steel, Yellow Cadmium Plated	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	3	-55 °C	125 °C	5	0.283 in	7.2 mm	UL94 V-0	Panel Mount, Right Angle, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural	50	D-Sub	Polyester, Glass Filled
