BA270
ActivePasternack
ADAPTOR UHF M/BNC M
BA270
ActivePasternack
ADAPTOR UHF M/BNC M
Description
General part information
BA270

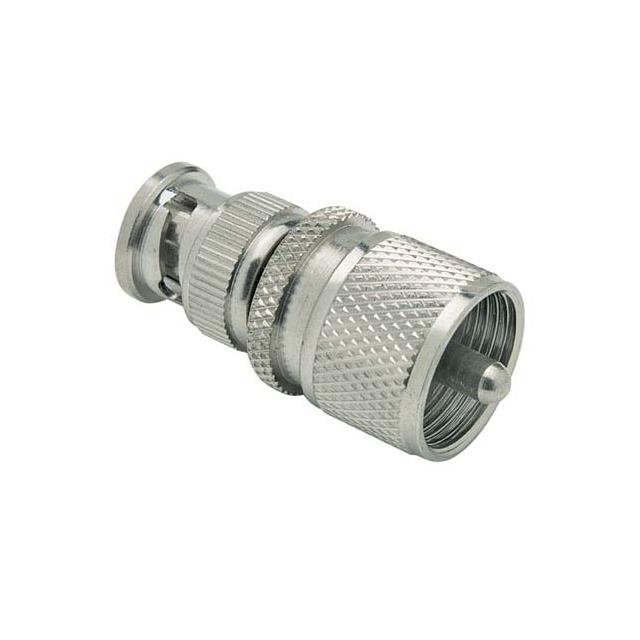

Adapter Coaxial Connector BNC Plug, Male Pin To UHF Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA270 |
|---|---|
| Adapter Series | BNC to UHF |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) | UHF Plug, Male Pin |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
