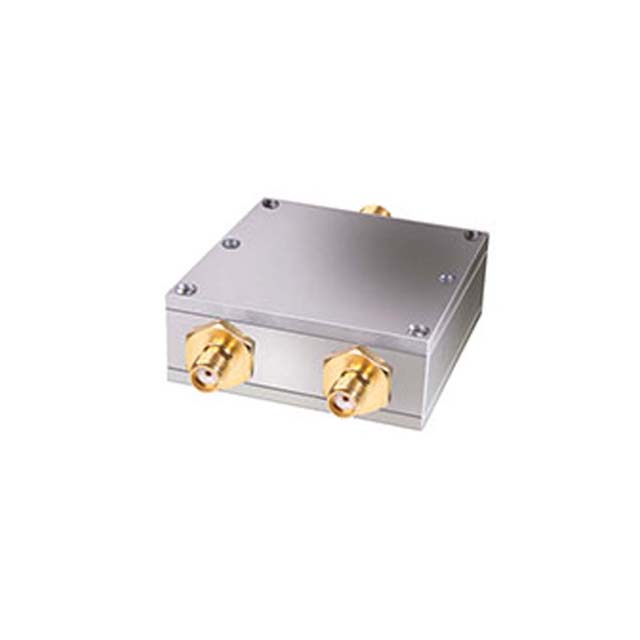

ZAPD-2-S+
ActiveMini-Circuits
PWR DIV / SMA / ROHS
ZAPD-2-S+
ActiveMini-Circuits
PWR DIV / SMA / ROHS
Description
General part information
ZAPD-2-S+
RF Power Divider 1 GHz ~ 2 GHz Isolation (Min) 19dB, 2° Imbalance (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZAPD-2-S+ |
|---|---|
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 1 GHz |
| Imbalance (Max) | 2 ° |
| Insertion Loss | 0.3 dB |
| Isolation (Min) | 19 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.78 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 2 in |
