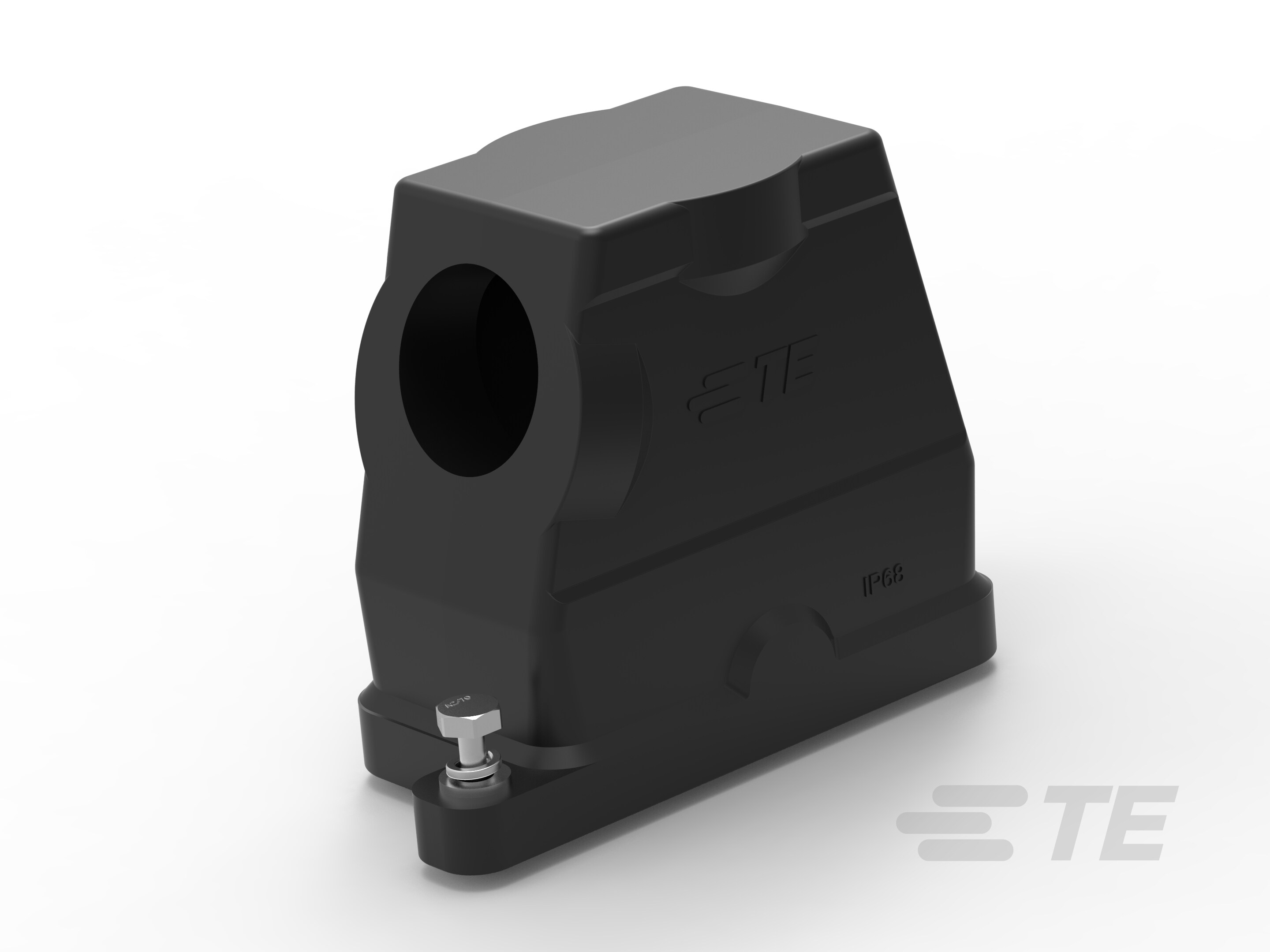

Specification	T1910100129-009

Connector Type	Hood
Features	EMC Resistant, Corrosion Resistant
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Lock Location	Screw Locks on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	H10B
Size / Dimension Height	3.976 in
Size / Dimension Length	5.748 in
Size / Dimension Width	2.283 in
Style	Side Entry
Thread Size	PG29

HDC IP68 EMC Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Housing Material	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Thread Size	Connector Type	Style	Housing Color	Features	Size	Housing Finish
TE Connectivity AMP Connectors T1922240132-009	125 °C	-40 °C	Screw Locks on Hood	IP68	Dust Tight Waterproof	Aluminum Alloy Die Cast	3.543 in	6.142 in	2.244 in	M32	Hood	Top Entry	Black	Corrosion Resistant EMC Resistant	H24B
TE Connectivity AMP Connectors T1910160121-000	125 °C	-40 °C	Screw Locks on Hood	IP68	Dust Tight Waterproof	Aluminum Alloy Die Cast	4.4 in	6.535 in	2.283 in	PG21	Hood	Side Entry	Black		H16B	Powder Coated
TE Connectivity AMP Connectors T1240105132-000	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65	Dust Tight Water Resistant	Aluminum Alloy Die Cast	2.835 in	2.874 in	1.693 in	M32	Hood	Top Entry			H10B
TE Connectivity AMP Connectors T1902163240-009	125 °C	-40 °C	Screw Locks on Hood	IP68	Dust Tight Waterproof	Aluminum Alloy Die Cast	3.15 in	5.118 in	2.094 in	M32 M40	Hood	Side Top Entry	White	Corrosion Resistant EMC Resistant	H16B	Powder Coated
TE Connectivity AMP Connectors T1910241129-009
TE Connectivity AMP Connectors T1922102132-009	125 °C	-40 °C	Screw Locks on Hood	IP68	Dust Tight Waterproof	Aluminum Die Cast	2.756 in	4.331 in	2.094 in	M32	Hood	Top Entry	Gray	Corrosion Resistant EMC Resistant	H10B	Powder Coated
TE Connectivity AMP Connectors T1910101129-009
TE Connectivity AMP Connectors T1130165125-000			Screw Locks on Hood							M25	Hood	Top Entry			H16B
TE Connectivity AMP Connectors T1902163240-109	125 °C	-40 °C	Screw Locks on Hood	IP68	Dust Tight Waterproof	Aluminum Alloy Die Cast	3.15 in	5.118 in	2.094 in	M32 M40	Hood	Side Top Entry	Black	Corrosion Resistant EMC Resistant	H16B	Powder Coated
TE Connectivity AMP Connectors T1912102132-009
