83342112
ActiveMurrplastik Systems, Inc.
BRAIDED CONDUIT, SLIT, 5-8MM, MO
83342112
ActiveMurrplastik Systems, Inc.
BRAIDED CONDUIT, SLIT, 5-8MM, MO
Description
General part information
83342112

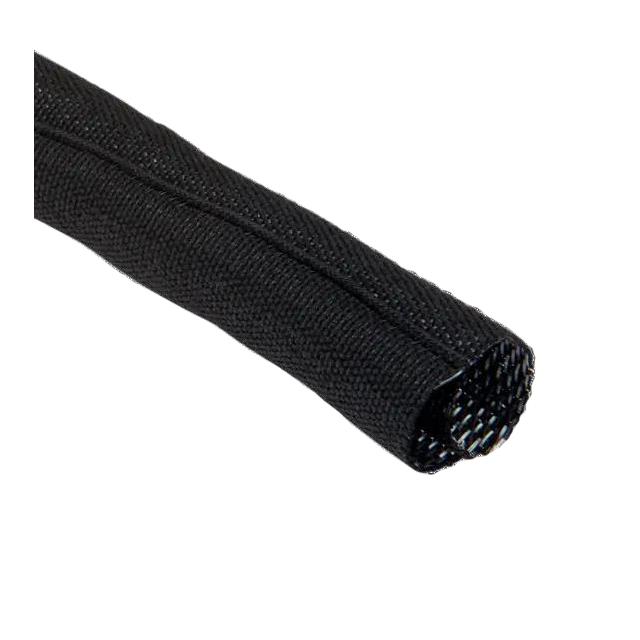

Black Polyester Braided Sleeving 0.197" (5.00mm) 82.02' (25.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 83342112 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside | 0.197 in |
| Diameter - Outside | 0.315 in |
| Heat Protection | Flame Retardant |
| Length | 82.02 ft |
| Material | Polyester |
| Material Flammability Rating | UL 224 VW-1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Type | Sleeving |
| Type Attributes | Braided |
