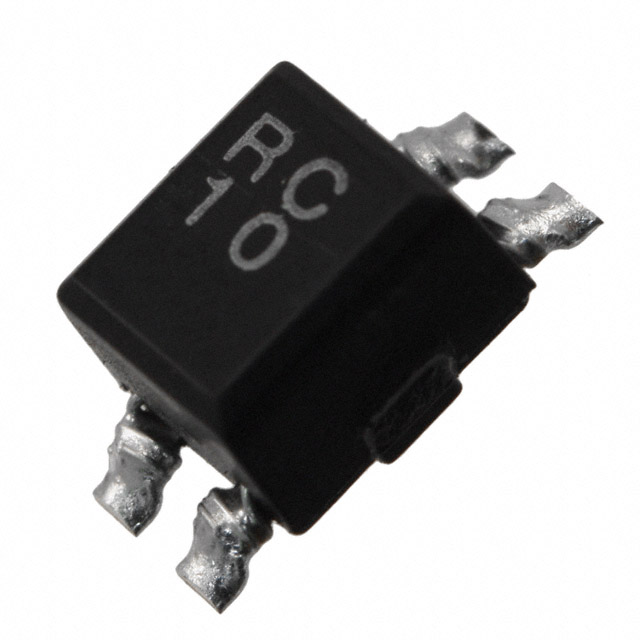

CM04RC10T
ObsoleteTaiyo Yuden
CMC 4A 2LN 100 OHM SMD
CM04RC10T
ObsoleteTaiyo Yuden
CMC 4A 2LN 100 OHM SMD
Description
General part information
CM04RC10T
2 Line Common Mode Choke Surface Mount 100 Ohms @ 200 MHz 4A DCR 20mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM04RC10T |
|---|---|
| Current Rating (Max) | 4 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.173 in |
| Impedance | 100 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 Gull Wing, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.354 in |
| Voltage Rating - DC | 50 V |
