Description
General part information

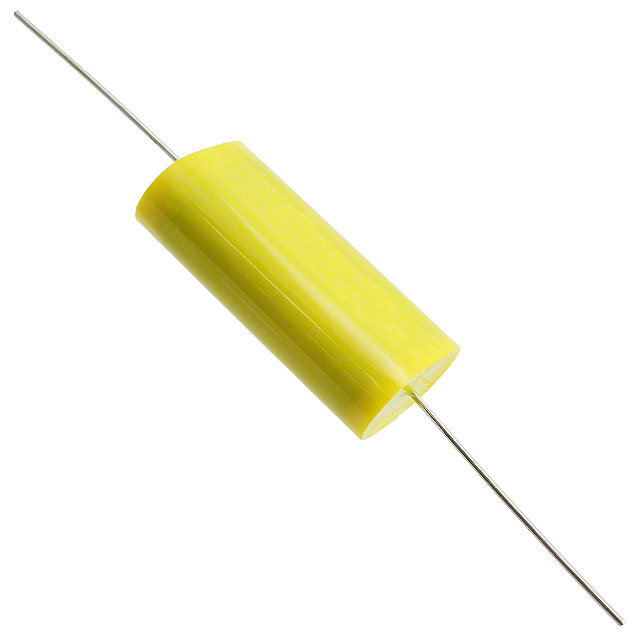

QAK2J155KTP
1.5 µF Film Capacitor 630V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | QAK2J155KTP |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Length | 1.732 in |
| Size / Dimension Thickness | 0.571 in |
| Size / Dimension Width | 0.984 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 630 V |
