0152660213

0152660213

Active

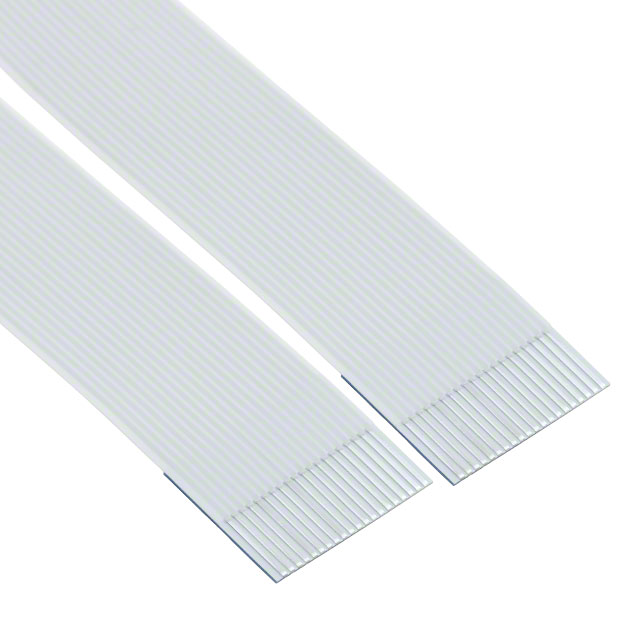

CABLE ASSEMBLY 0.127M 33AWG 0.5MM 20 TO 20 POS FFC JUMPER TO FFC JUMPER M-M PREMO-FLEX™FFC JUMPER BAG

0152660213

0152660213

Active

CABLE ASSEMBLY 0.127M 33AWG 0.5MM 20 TO 20 POS FFC JUMPER TO FFC JUMPER M-M PREMO-FLEX™FFC JUMPER BAG

Description Specifications Series Pricing CAD Documents

Description

General part information

015266 Series

20 Position FFC, FPC Cable 0.020" (0.50mm) 5.000" (127.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	0152660213

Cable Type	FPC, FFC
Length	5 in
Length - Exposed Ends	0.157 in
Number of Conductors	20
Pitch	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

15266-001 Pkg Spec

15266-001 Prod Spec

0152660213 | Datasheet

015266 Series

...

Part	Pitch	Length	Number of Conductors	Cable Type	Termination Style	Length - Exposed Ends
Molex 0152660061	0.02 in	0.5 ft	6	FFC FPC	Backers on Both Sides Top on Both Sides	0.157 in
Molex 0152660811	0.02 in	1.18 in	13	FFC FPC	Backers on Both Sides Top on Both Sides	0.157 in
Molex 0152660310	0.02 in	228.6 mm	28	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	0.157 in
Molex 0152660264	0.02 in	8 in	24	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	0.157 in
Molex 0152660385	0.02 in	3 "	36	FFC FPC	Backers on Both Sides Top on Both Sides	0.157 in
Molex 0152661064	0.02 in	7 in	35	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	0.157 in
Molex 0152660088	0.02 in	8 in	8	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	0.157 in
Molex 0152660208	0.02 in	2 in	20	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	0.157 in
Molex 0152660321	0.02 in	4 in	30	FFC FPC	Backers on Both Sides Top on Both Sides	0.157 in
