Description
General part information

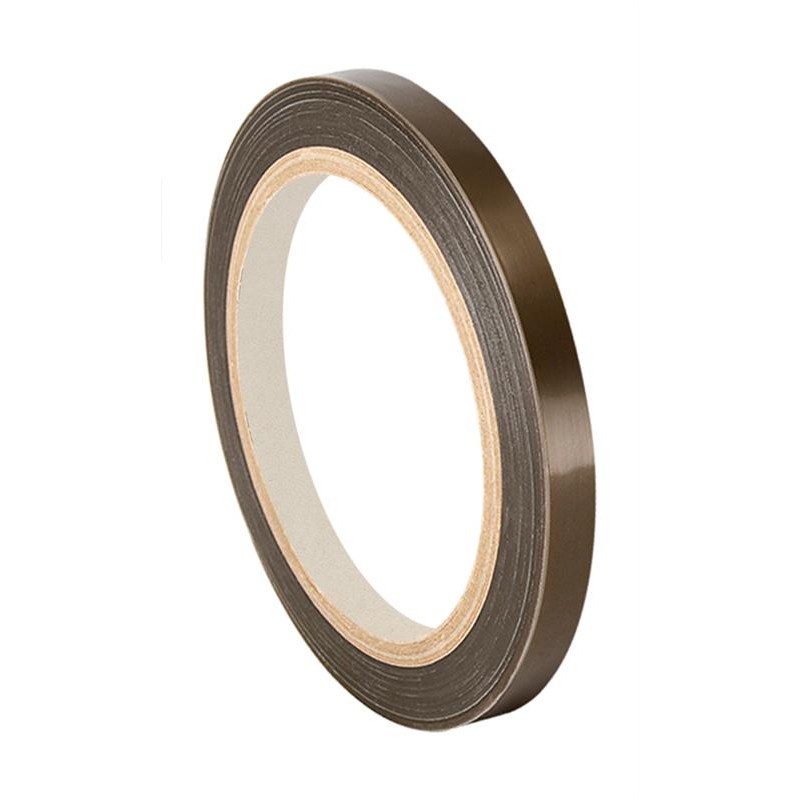

2265-02-1-5
2265-02 EXTRUDED, HIGH MODULUS P
Technical Specifications
Parameters and characteristics for this part
| Specification | 2265-02-1-5 |
|---|---|
| Adhesive | Silicone |
| Backing | PTFE Film |
| Carrier | PTFE Film |
| Color | Gray |
| Length (ft) | 15 ft |
| Length (yd) | 5 yd |
| Tape Type | PTFE Tape |
| Temperature Range (Max) | 500 °F |
| Temperature Range (Min) | -100 °F |
| Thickness | 0.0035 in |
| Thickness - Adhesive | 0.0015 in |
| Thickness - Backing, Carrier | 0.002 in |
| Usage | Electrically Insulating |
| Width | 1 in |
