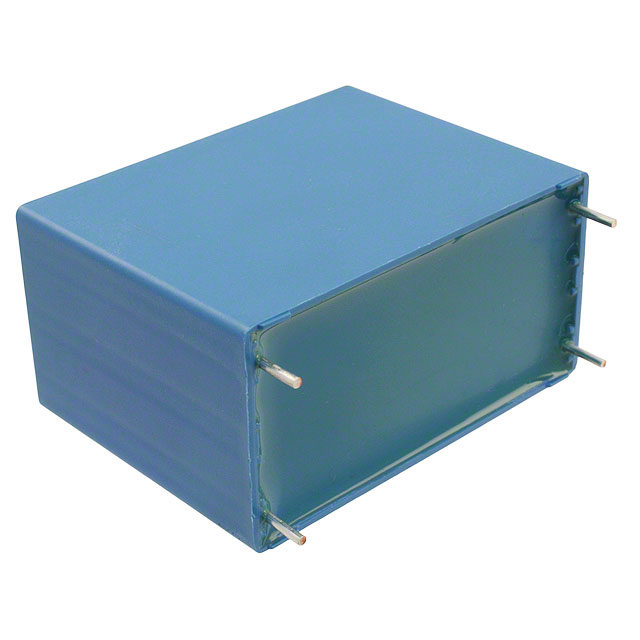

Specification	B32928A4206K000

Applications	RFI Suppression, EMI
Capacitance	20 µF
Dielectric Material	Polypropylene (PP)
Features	85C/85% Humidity, 85% Humidity, 85C Humidity
Height - Seated (Max)	2.244 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	Radial
Ratings	X2
Size / Dimension Length	2.264 in
Size / Dimension Width	1.772 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	350 VAC
Voltage Rating - DC	650 V
