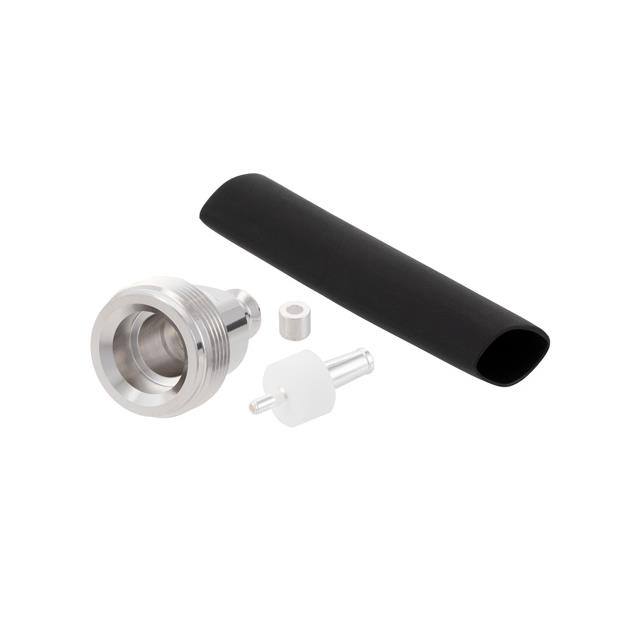

TC-402-4195F-LP-LC
ActivePasternack
4.1/9.5 MINI DIN FEMALE LOW PIM
TC-402-4195F-LP-LC
ActivePasternack
4.1/9.5 MINI DIN FEMALE LOW PIM
Description
General part information
TC-402-4195F-LP-LC
4.1/9.5 Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-402-4195F-LP-LC |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | TFT-402, TFT-402-LF |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Silver |
| Connector Style | 4.1/9.5 |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.24 dB |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 2.5 kV |
