216548-1
ActiveTE Connectivity AMP Connectors

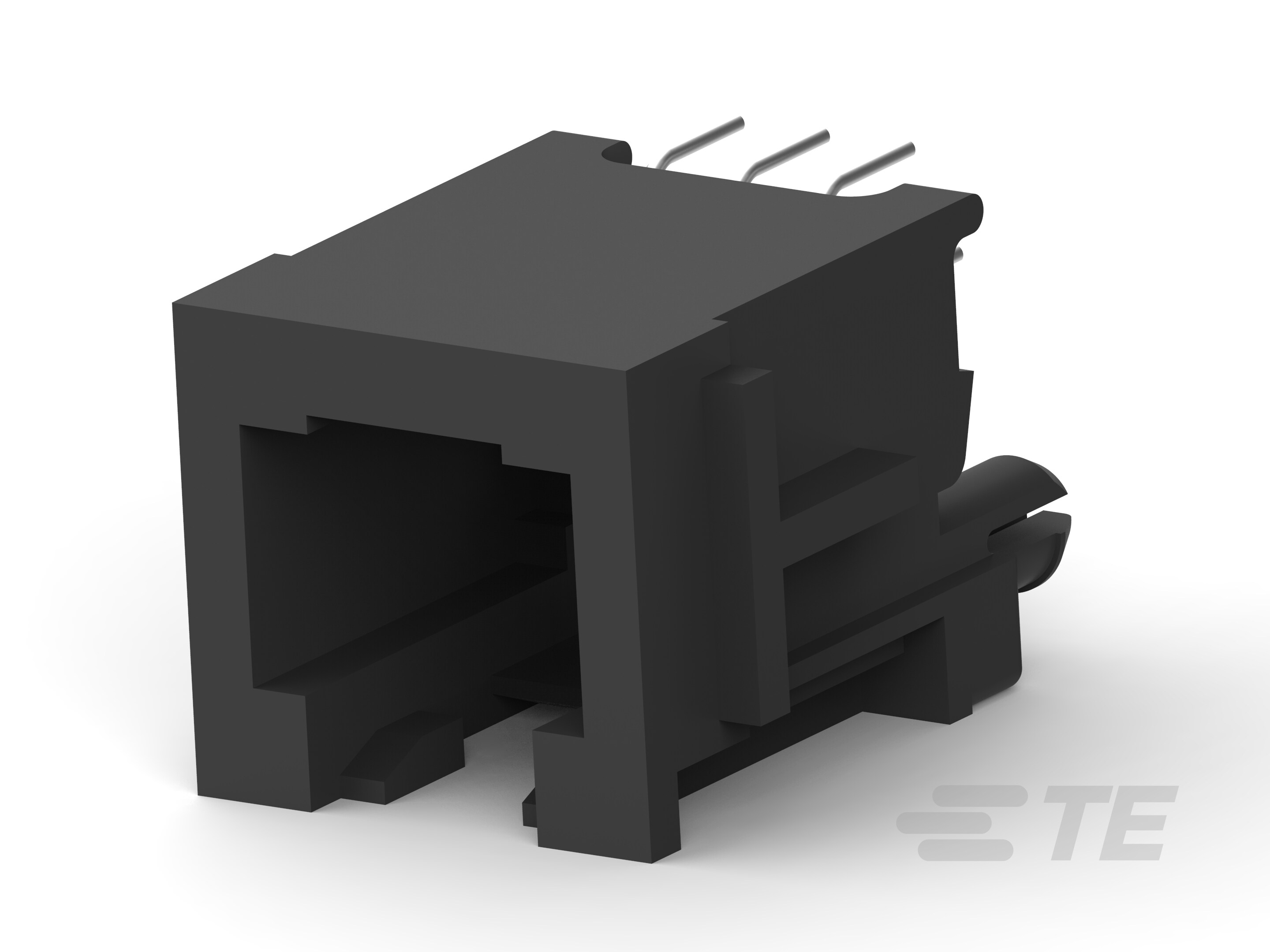

CONN MOD JACK 6P6C VERT UNSHLD
216548-1
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 6P6C VERT UNSHLD
Description
General part information
216548-1
Single Port, 1 x 1, Standard Profile, RJ Type Jacks & Plugs, Jack, Standard - Latch Down, Vertical, Cat 3, OEG Miniature Relay PCF, RJ25 Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 216548-1 |
|---|---|
| Connector Type | RJ25, RJ11, RJ12, RJ14, Jack |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Lock, Panel Stops |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Ratings | Cat3 |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
