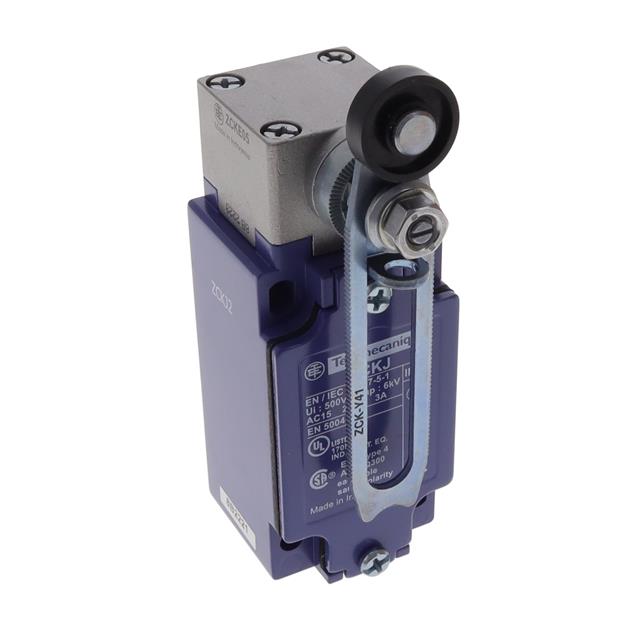

XCKJ20541
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT DPDT 3A 240V
XCKJ20541
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT DPDT 3A 240V
Description
General part information
XCKJ20541
Switch DPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCKJ20541 |
|---|---|
| Actuator Type | No Lever, Side Rotary |
| Circuit | DPDT |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 30000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
