2134061-1
ActiveTE Connectivity AMP Connectors

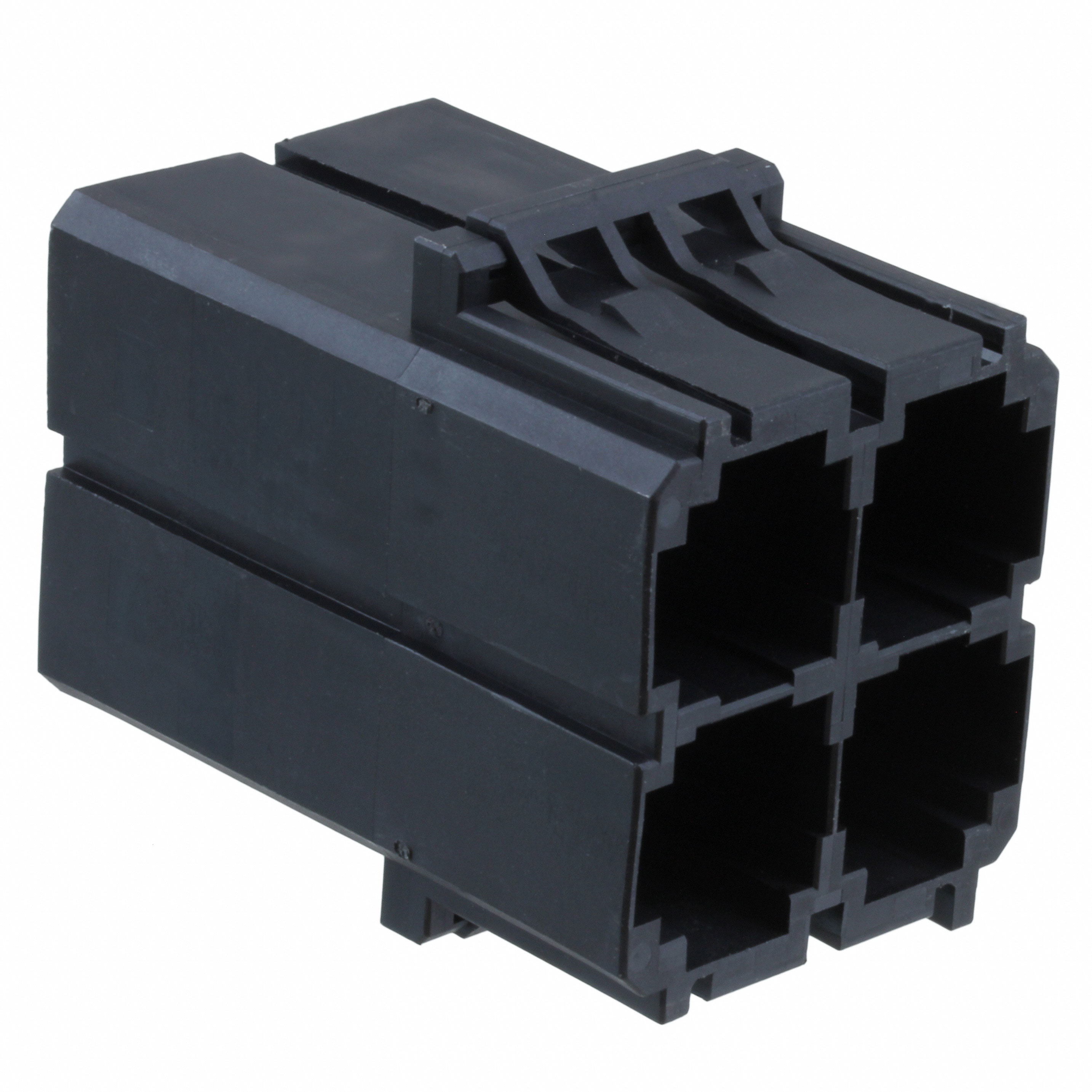

DYNAMIC D7300 PIN HSG ASSY RVS 4P XX
2134061-1
ActiveTE Connectivity AMP Connectors
DYNAMIC D7300 PIN HSG ASSY RVS 4P XX
Description
General part information
Dynamic 7000 Series Series
4 Position, Housing for Male Terminals, Housing, Crimp, Wire-to-Wire, 10.16 mm [.4 in] Centerline, 2 Row, Wire & Cable, Power, Dynamic 7000 Series
Technical Specifications
Parameters and characteristics for this part
| Specification | 2134061-1 |
|---|---|
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Glass Filled, Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.63 in |
| Row Spacing | 0.63 in |
