Description
General part information

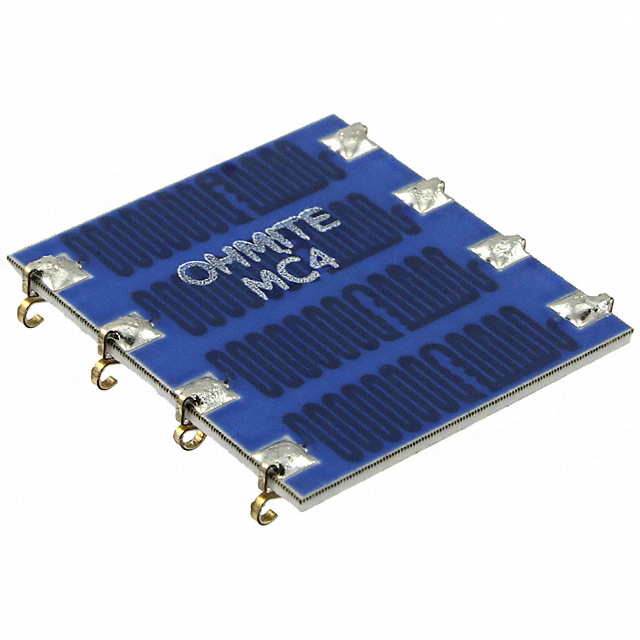

MC4-1005JE
10M Ohm ±5% 750mW Power Per Element Isolated 4 Resistor Network/Array ±50ppm/°C 8-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | MC4-1005JE |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.03 in |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature (Max) | 180 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 8-SMD |
| Package Name | 8-SMD DIP |
| Power Per Element | 750 mW |
| Resistance | 10 MOhm |
| Size / Dimension Length | 0.75 in |
| Size / Dimension Width | 0.75 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
