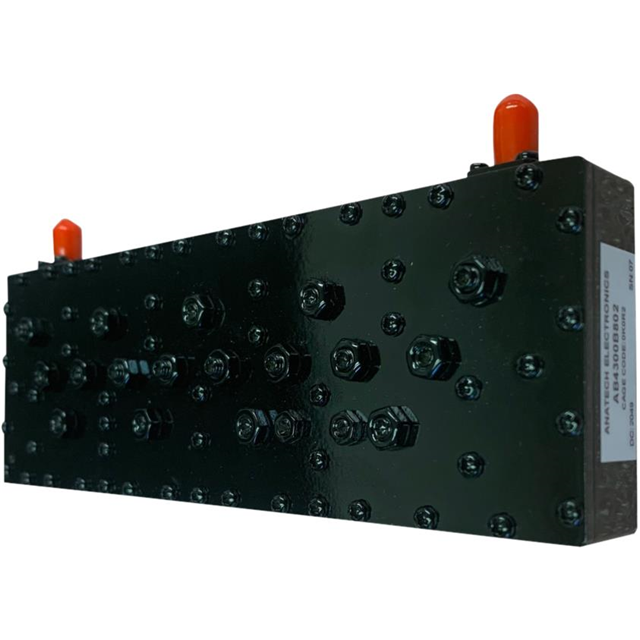

AB4300B802
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 4.3GHZ MODULE
AB4300B802
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 4.3GHZ MODULE
Description
General part information
AB4300B802
4.3GHz Center Frequency Band Pass RF Filter (Radio Frequency) 120MHz Bandwidth 0.8dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AB4300B802 |
|---|---|
| Bandwidth | 120 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 4.3 GHz |
| Height (Max) | 1.024 in |
| Insertion Loss | 0.8 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Ripple (dB) | 0.2 dB |
| Size / Dimension Length | 6.535 in |
| Size / Dimension Width | 2.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
