1-2350513-2
NRNDTE Connectivity AMP Connectors

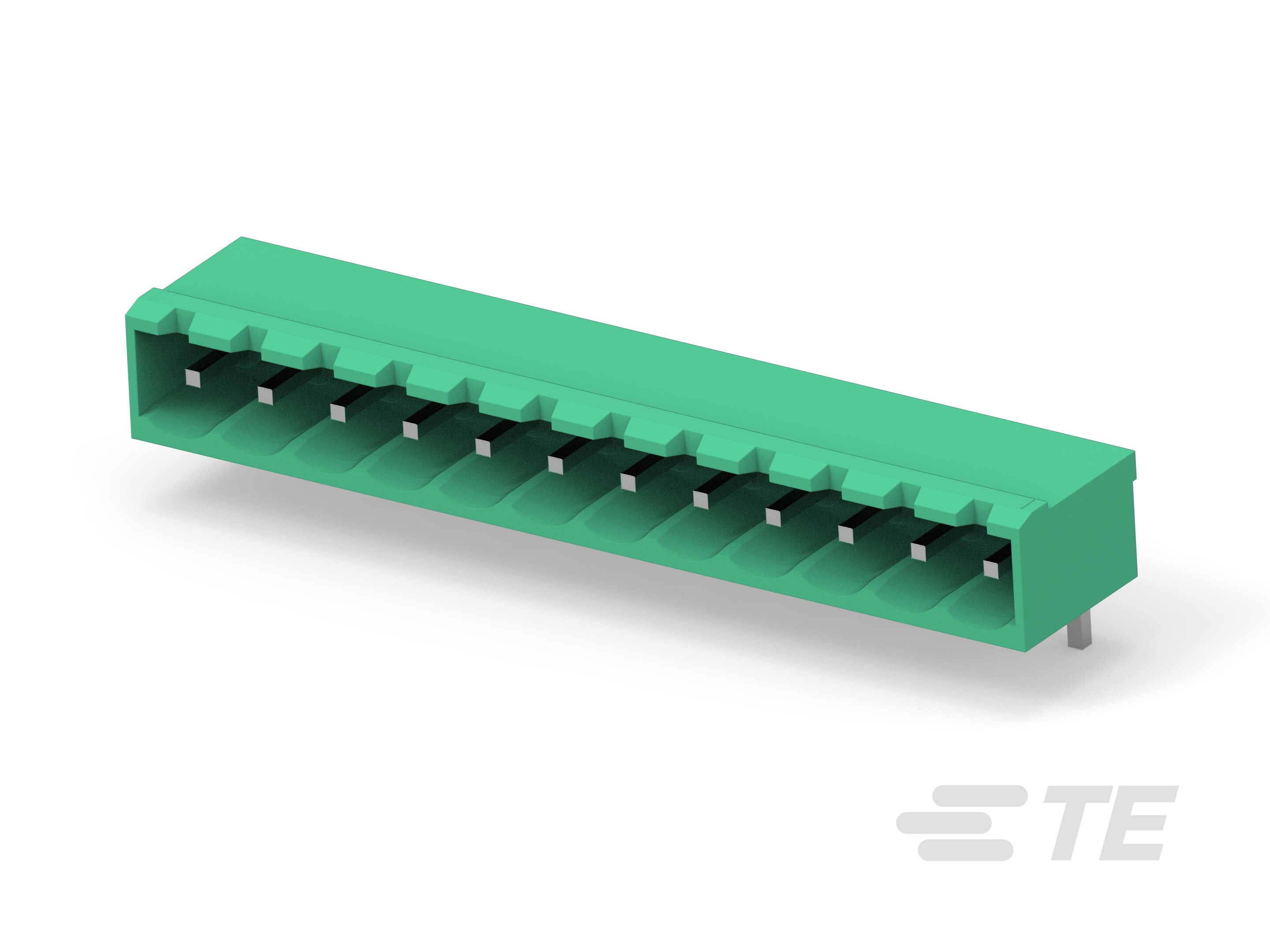

PLUGGABLE TERMINAL BLOCKS 12POS HEADER 90 DEG 5.0MMTAIL LGTH 4.5MM
1-2350513-2
NRNDTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS 12POS HEADER 90 DEG 5.0MMTAIL LGTH 4.5MM
Description
General part information
1-2350513-2
12 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2350513-2 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 16 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Positions Per Level | 12 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
