A09-HASM-675
ObsoleteDigi International

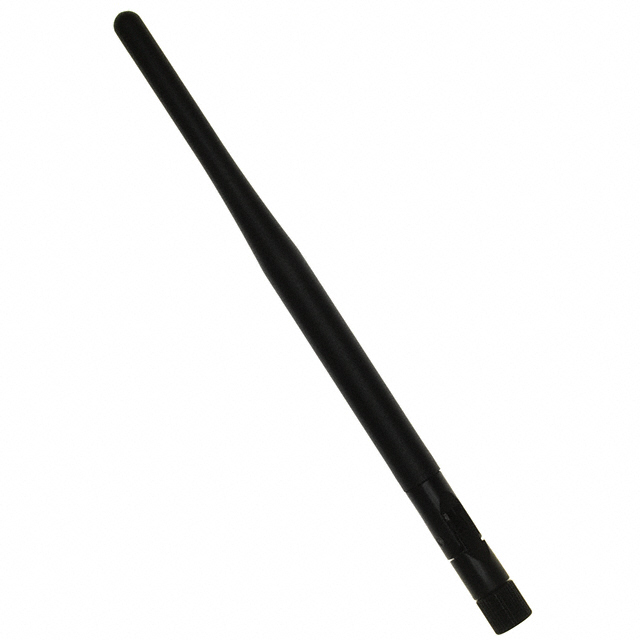

RF ANT 900MHZ WHP TILT RP-SMA 6"
A09-HASM-675
ObsoleteDigi International
RF ANT 900MHZ WHP TILT RP-SMA 6"
Description
General part information
A09-HASM-675
RF ANTENNA Whip, Tilt RP-SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | A09-HASM-675 |
|---|---|
| Antenna Type | Tilt, Whip |
| Frequency (Center/Band) | 900 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 902 MHz |
| Gain | 2.15 dBi |
| Height (Max) | 5.906 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination Type | RP-SMA Male |
| VSWR | 1.9 |
