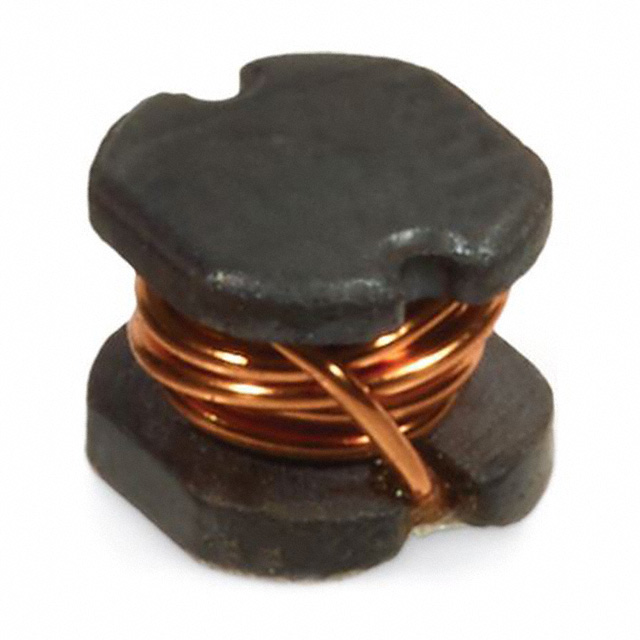

TCK-151
ActiveTraco Power
FIXED IND 4.7UH 1.5A 150MOHM SMD
TCK-151
ActiveTraco Power
FIXED IND 4.7UH 1.5A 150MOHM SMD
Description
General part information
TCK-151
4.7 µH Unshielded Inductor 1.5 A 150mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | TCK-151 |
|---|---|
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 150 mOhm |
| Height - Seated (Max) | 0.102 in |
| Inductance | 4.7 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
