Description

General part information

2-2495217-3

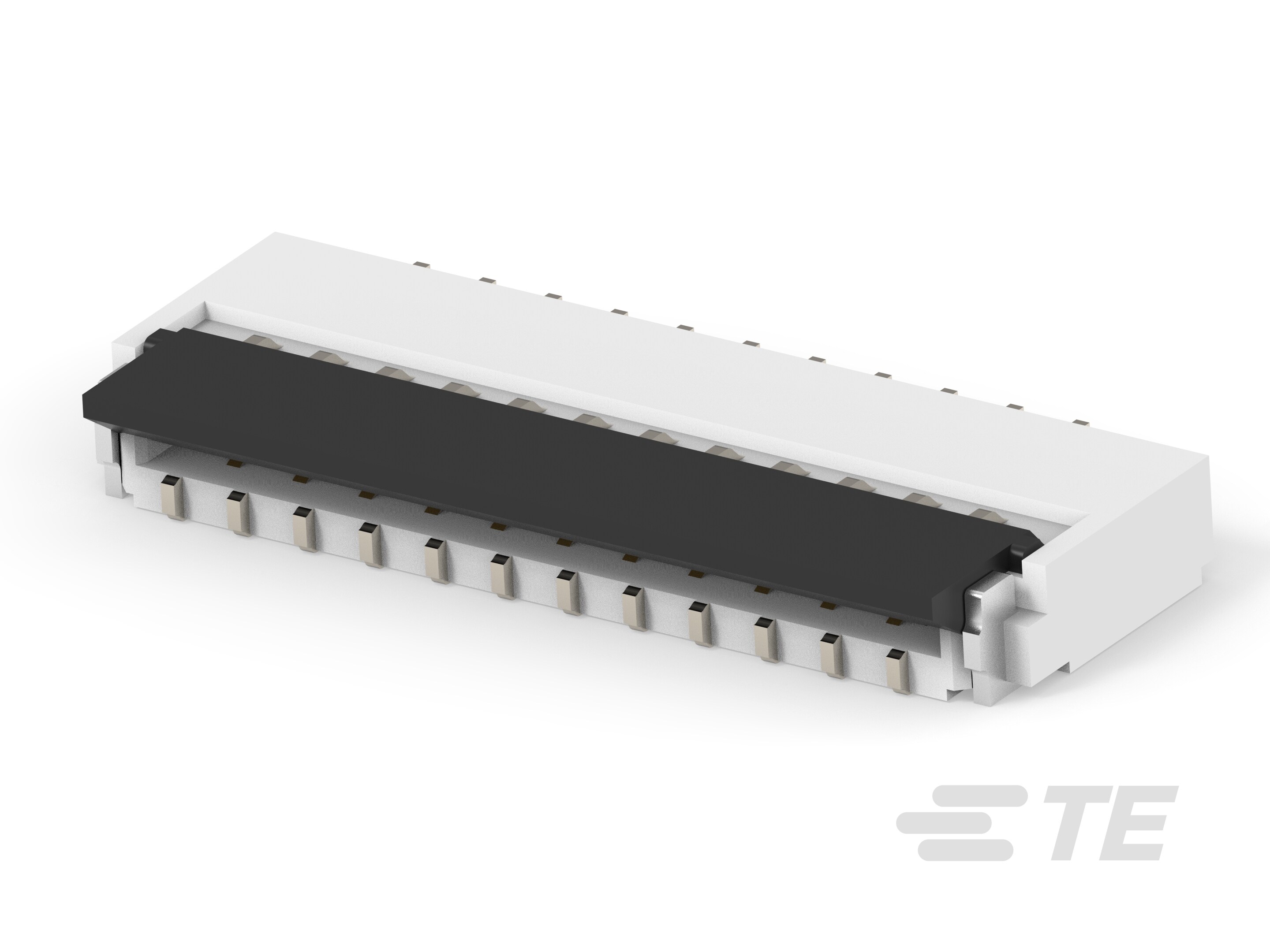

.3 mm Centerline, Right Angle, Surface Mount, Stuffer Actuator, Gold Flash, 23 Position, FPC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification2-2495217-3
Actuator MaterialPolyphenylene Sulfide (PPS)
Cable End TypeStraight
Connector/Contact TypeContacts, Bottom
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesSolder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness0.2 mm
Flat Flex TypeFPC
Height Above Board0.039 in
Housing MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Surface Mount
Number of Positions23
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.024 in
TerminationSolder
Voltage Rating50 V
