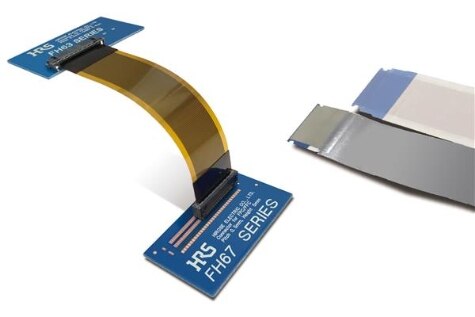

FH67-30S-0.5SV
ActiveHirose Electric Co Ltd
CONN FFC VERT 30POS 0.5MM SMD
FH67-30S-0.5SV
ActiveHirose Electric Co Ltd
CONN FFC VERT 30POS 0.5MM SMD
Description
General part information
FH67-30S-0.5SV
CONN FFC VERT 30POS 0.5MM SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | FH67-30S-0.5SV |
|---|---|
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, 1 Sided, Vertical |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.33 mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.205 in |
| Housing Material | Liquid Crystal Polymer, LCP |
| Locking Feature | Rotary Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
