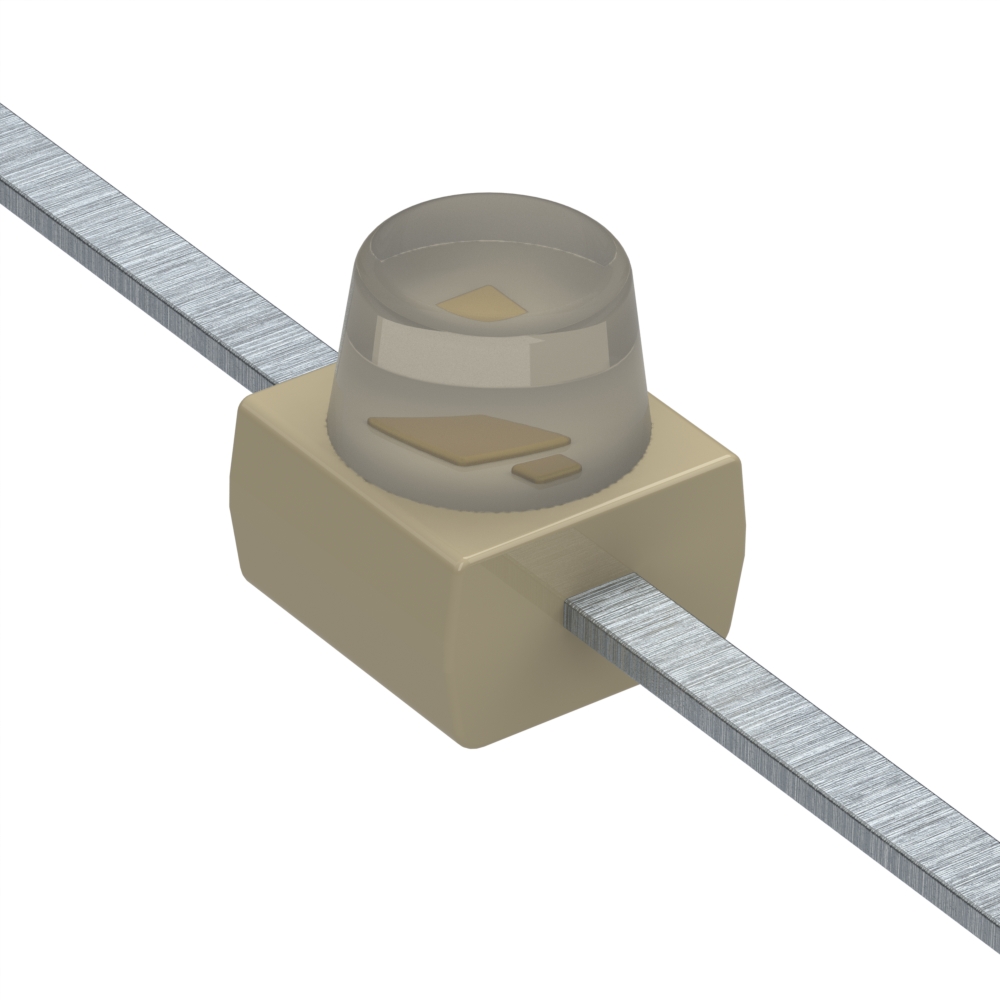

HLMP-PB00-PR000
ObsoleteBroadcom Limited
LED BLUE CLEAR SMD
HLMP-PB00-PR000
ObsoleteBroadcom Limited
LED BLUE CLEAR SMD
Description
General part information
HLMP-PB00-PR000
LED BLUE CLEAR SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP-PB00-PR000 |
|---|---|
| Color | Blue |
| Current - Test | 20 mA |
| Height (Max) | 2.44 mm |
| Lens Diameter | 1.91 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 60 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Package Name | SMD |
| Size / Dimension Length | 2.09 mm |
| Size / Dimension Width | 2.44 mm |
| Viewing Angle | 85 ° |
| Voltage - Forward (Vf) (Typ) | 3.7 V |
| Wavelength - Dominant | 468 nm |
| Wavelength - Peak | 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
