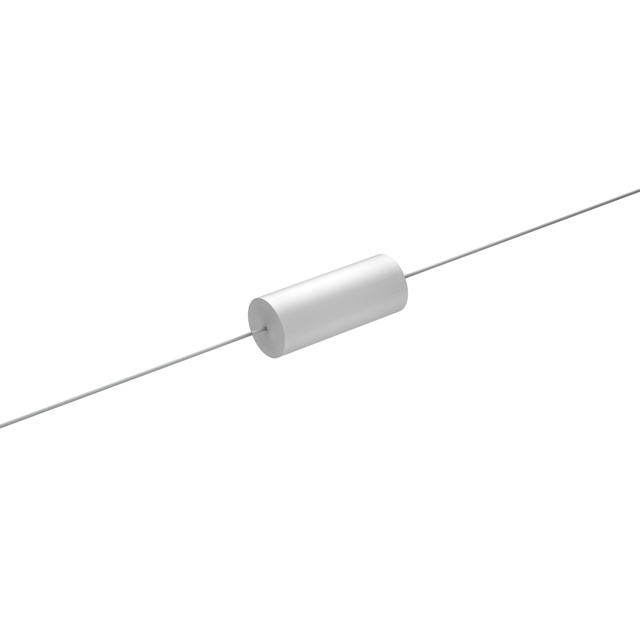

MMWA2W1K-F
ActiveCornell Dubilier Knowles
CAP FILM 1UF 10% 250VDC AXIAL
MMWA2W1K-F
ActiveCornell Dubilier Knowles
CAP FILM 1UF 10% 250VDC AXIAL
Description
General part information
MMWA2W1K-F
1 µF Film Capacitor 125V 250V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | MMWA2W1K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 1 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.429 in |
| Size / Dimension Length | 1.063 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 250 VDC |
