Description
General part information

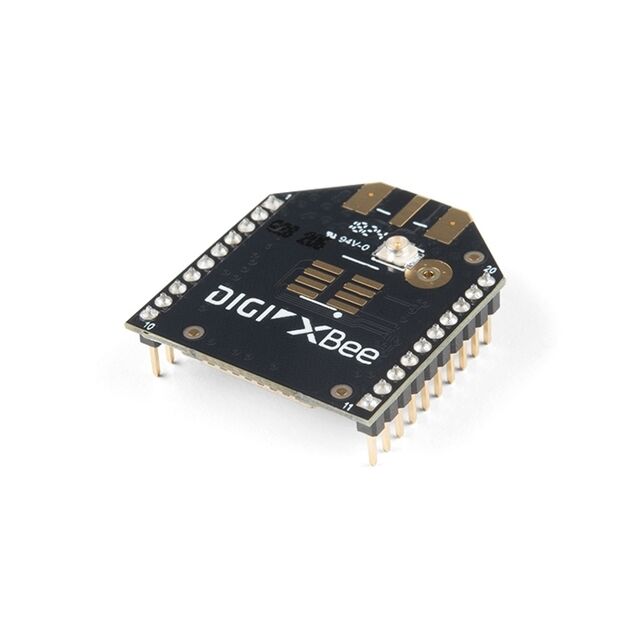

15128
802.15.4 GPS, Zigbee® Transceiver Module 2.4GHz ~ 2.48GHz Antenna Not Included, U.FL Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 15128 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 17 mA |
| Current - Transmitting | 40 mA |
| Data Rate | 1 Mbps |
| Frequency (Max) | 2.48 GHz |
| Frequency (Min) | 2.4 GHz |
| Modulation | DSSS |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 8 dBm |
| Protocol | GPS, Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | GPIO, USB, PWM, SPI, I2C, UART |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
