350180-2
ActiveTEST JACK, 3 LEGGED, 4.75 A, 1.372 MM, RED
350180-2
ActiveTEST JACK, 3 LEGGED, 4.75 A, 1.372 MM, RED
Description
General part information
350180-2

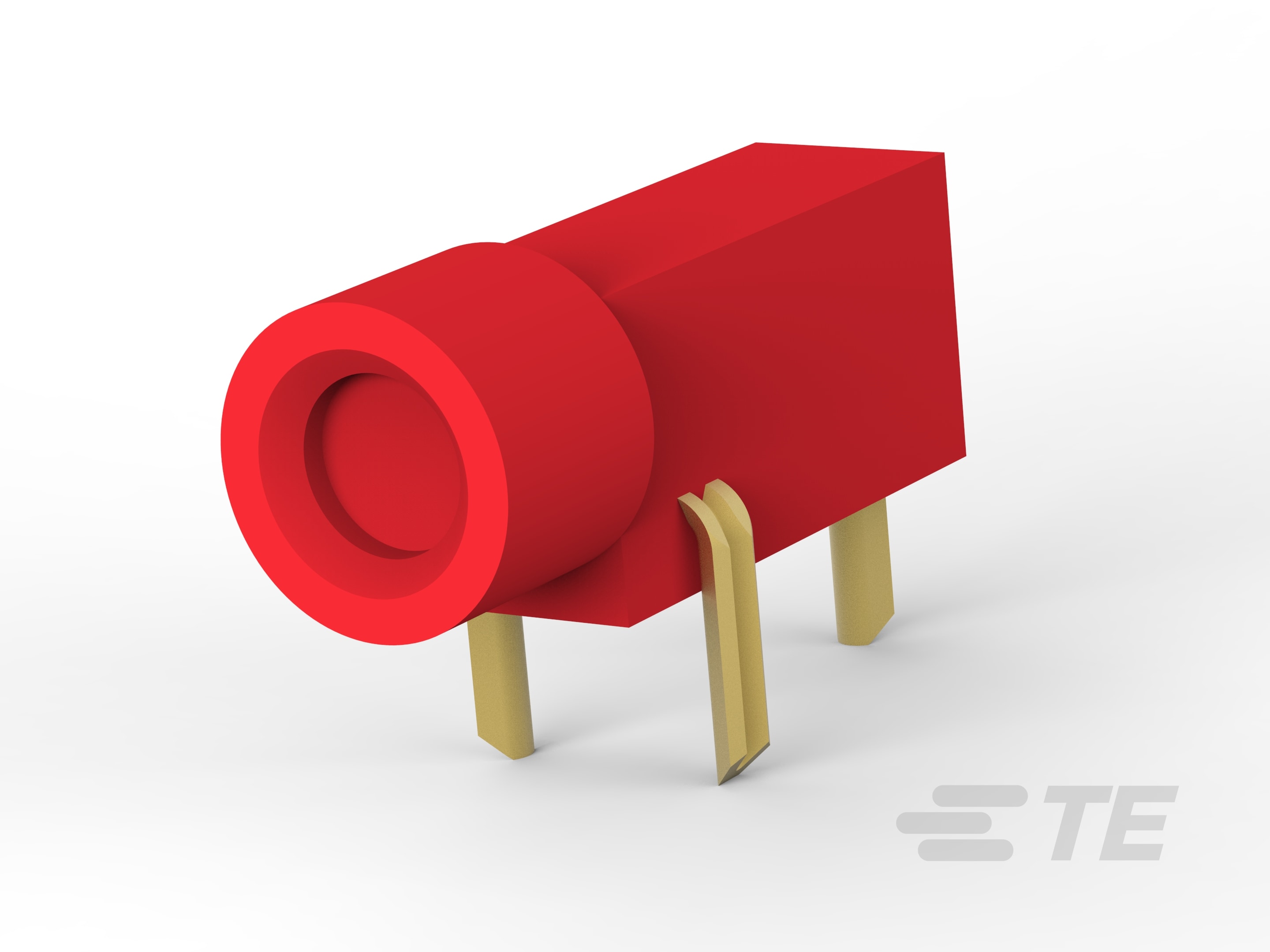

The 350180-2 from TE Connectivity is a test probe receptacle with funnel entry. It is designed to provide low cost test probe capability of circuits on PC boards without interruption of operating currents with precise reliability. This test probe receptacle is available with three leg mount that gives maximum stability.
Technical Specifications
Parameters and characteristics for this part
| Specification | 350180-2 |
|---|---|
| Color | Red |
| Material - Body | Brass |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Mounting Type | Through Hole, Right Angle |
| Plating | Gold |
| Type | PC Test Point Jack |
