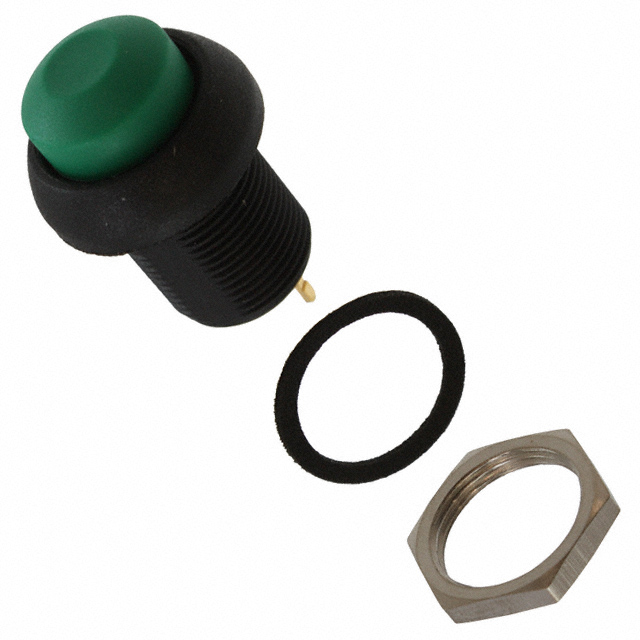

Specification	IMR7P432104

Actuator Marking	No Marking
Actuator Type	Button, Round, Domed
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating	3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	13.6 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	28 V

IM Series

Part	Circuit	Voltage Rating - DC	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Actuator Type	Quick Connect Size (0.110")	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Switch Function	Current Rating	Color - Actuator/Cap	Type	Features	Actuator Marking	Electrical Life (Cycles)	Mechanical Life (Cycles)
APEM Inc. IMP7Z462234104	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Domed Round	0.11 in	Quick Connect	13.6 mm	Circular	On-Mom	3 A	Red	Standard
APEM Inc. IMP7Z472104	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Round	0.11 in	Quick Connect	13.6 mm	Circular	On-Mom	3 A	White	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMR7Z422	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Domed Round	0.11 in	Quick Connect	13.6 mm	Circular	On-Mom	3 A	Black	Standard	Epoxy Sealed Terminals	No Marking	25000	1000000 Cycles
APEM Inc. IMR7P4B2104	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Domed Round		PC Pin	13.6 mm	Circular	On-Mom	3 A	Blue Dark	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMP7P412234	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Round		PC Pin	13.6 mm	Circular	On-Mom	3 A	Blue	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMR7P462104	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Domed Round		PC Pin	13.6 mm	Circular	On-Mom	3 A	Red	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMR7P472104	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Domed Round		PC Pin	13.6 mm	Circular	On-Mom	3 A	White	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMR7Z432075	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Domed Round	0.11 in	Quick Connect	13.6 mm	Circular	On-Mom	3 A	Green	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMP7P462075	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Round		PC Pin	13.6 mm	Circular	On-Mom	3 A	Red	Standard	Epoxy Sealed Terminals	No Marking
APEM Inc. IMP7P452	SPDT	28 V	-40 °C	85 °C	Dust Tight Waterproof	IP67	Front Panel Mount	Button Round		PC Pin	13.6 mm	Circular	On-Mom	3 A	Yellow	Standard	Epoxy Sealed Terminals	No Marking
