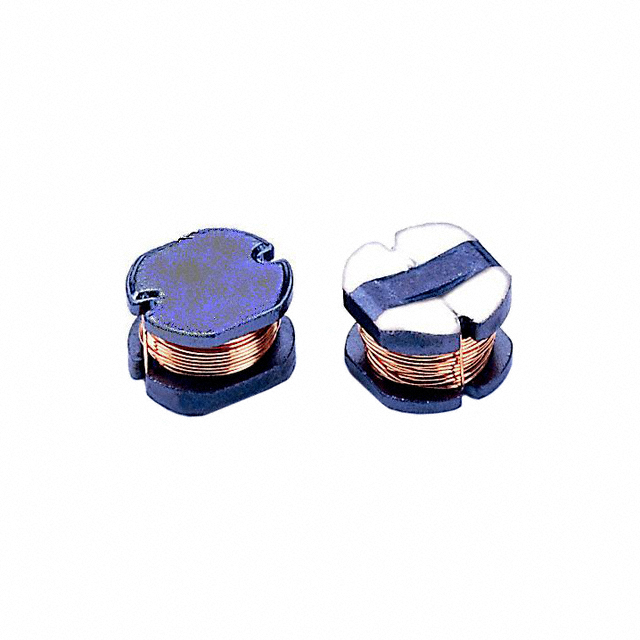

SC31-100
ActiveSignal Transformer
FIXED IND 10UH 800MA 350MOHM SMD
SC31-100
ActiveSignal Transformer
FIXED IND 10UH 800MA 350MOHM SMD
Description
General part information
SC31-100
10 µH Unshielded Wirewound Inductor 800 mA 350mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC31-100 |
|---|---|
| Current - Saturation (Isat) | 0.45 mA |
| Current Rating | 800 mA |
| DC Resistance (DCR) (Max) | 350 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.13 in |
| Tolerance | 20 % |
| Type | Wirewound |
