L01
ActiveGlobTek, Inc.
CONN PWR PLUG 2.50MMX5.00MM SLDR
L01
ActiveGlobTek, Inc.
CONN PWR PLUG 2.50MMX5.00MM SLDR
Description
General part information
L01

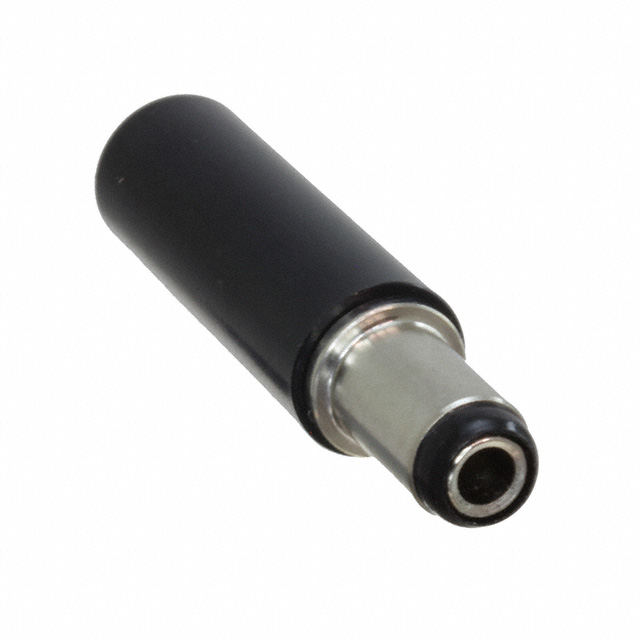

Power Barrel Connector Plug 2.50mm ID (0.098"), 5.00mm OD (0.197") Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | L01 |
|---|---|
| Actual Diameter (ID) | 0.098 in |
| Actual Diameter (OD) | 0.197 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Gender | Female |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Industry Recognized Mating Diameter (ID) | 2.5 mm |
| Industry Recognized Mating Diameter (OD) | 5 mm |
| Insulation Color | Blue |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Termination | Solder Eyelet(s) |
