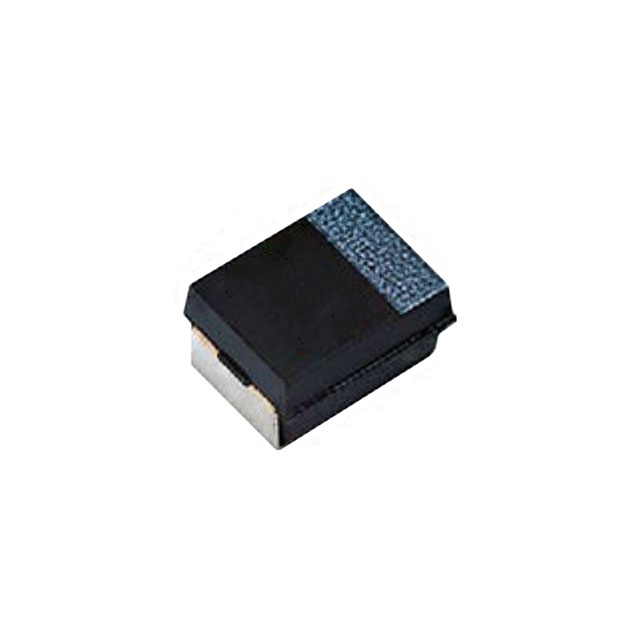

Specification	T50D337M2R5C0025

Capacitance	330 µF
ESR (Equivalent Series Resistance)	25 mOhm
Features	Automotive
Height - Seated (Max)	0.122 in
Lifetime	2000 Hrs
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	2917 (7343 Metric)
Ratings	AEC-Q200
Size / Dimension Length	0.287 in
Size / Dimension Width	0.169 in
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V
