Description
General part information

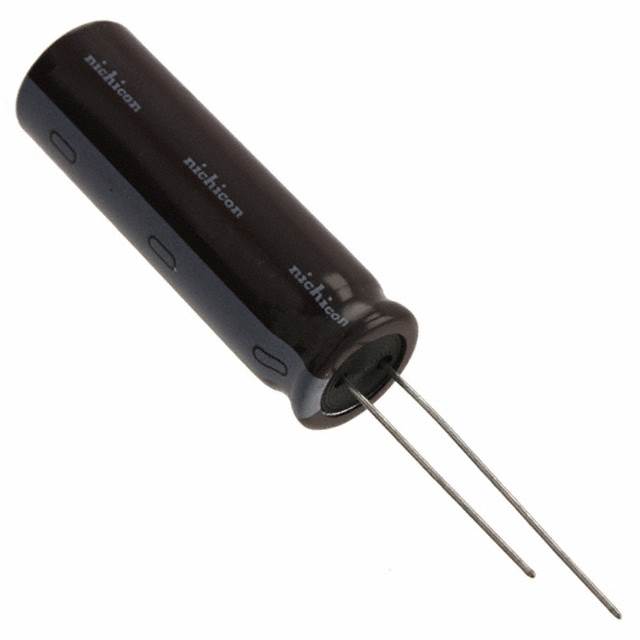

UPZ2D271MNY9
270 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPZ2D271MNY9 |
|---|---|
| Applications | General Purpose |
| Capacitance | 270 µF |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.771 A, 1.265 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
