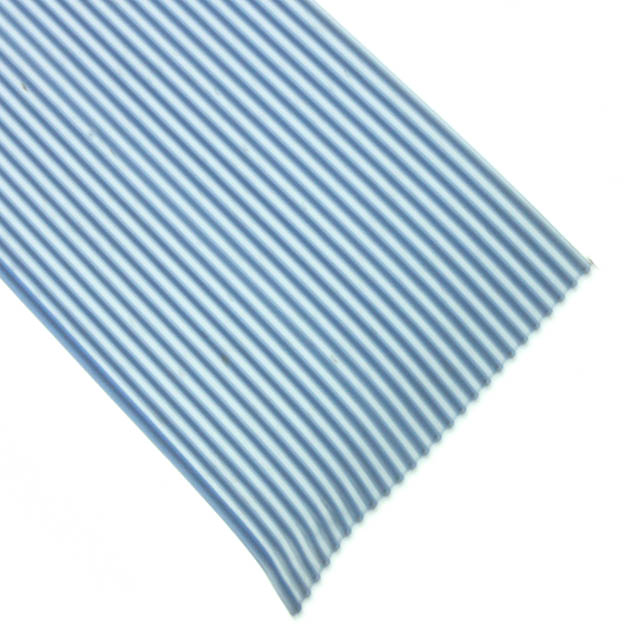

Specification	3601/25 100

Cable Type	Flat Cable
Conductor Material	Copper, Silver Coated
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue
Length	100 ft, 10 ft
Number of Conductors	25
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-55 °C
Pitch	0.05 in
Ratings	Style, UL, 20424
Ribbon Thickness	0.029 in
Ribbon Width	1.25 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3601 Series

Part	Voltage	Ribbon Thickness	Conductor Strand Count	Conductor Strand Gauge	Wire Gauge	Length	Ratings	Operating Temperature (Min)	Operating Temperature (Max)	Jacket Color	Cable Type	Jacket (Insulation) Material	Number of Conductors	Shielding	Pitch	Ribbon Width	First Conductor Mark	Insulation Resistance	Conductor Material	Length	Spool Size	Features
3M Electronic Specialty 3601/60 100	300 V	0.029 in	7 Strands	36 AWG	28 AWG	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	60	Unshielded	0.05 in	3 in	Blue	10 GOhm	Copper Silver Coated
3M Electronic Specialty 3601/10 100	300 V	0.029 in	7 Strands	36 AWG	28 AWG	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	10	Unshielded	0.05 in	0.5 in	Blue	10 GOhm	Copper Silver Coated	Enter Number of Feet in Order Quantity	100 ft
3M Electronic Specialty 3601/20 100	300 V	0.029 in	7 Strands	36 AWG	28 AWG	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	20	Unshielded	0.05 in	1 in	Blue	10 GOhm	Copper Silver Coated	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3601/34 100	300 V	0.029 in	7 Strands	36 AWG	28 AWG	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	34	Unshielded	0.05 in	1.7 in	Blue	10 GOhm	Copper Silver Coated	Enter Number of Feet in Order Quantity	100 ft
3M Electronic Specialty 3601/08 100	300 V	0.029 in	7 Strands	36 AWG	28 AWG	100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	8	Unshielded	0.05 in		Blue	10 GOhm	Copper Silver Coated
3M Electronic Specialty 3601/10	300 V	0.029 in	7 Strands	36 AWG	28 AWG			-55 °C	200 °C	Blue	Flat Cable	Poly-Vinyl Chloride (PVC)	10	Unshielded	0.05 in	0.5 in	Blue	10 GOhm	Copper Silver Coated
3M Electronic Specialty 3601/15 100	300 V	0.029 in	7 Strands	36 AWG	28 AWG	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	15	Unshielded	0.05 in	0.75 in	Blue	10 GOhm	Copper Silver Coated
3M Electronic Specialty 3601/16SF	300 V	0.029 in	7 Strands	36 AWG	28 AWG	100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	16	Unshielded	0.05 in	0.8 in	Blue	10 GOhm	Copper Silver Coated			Splice Free
3M Electronic Specialty 3601/06	300 V	0.029 in	7 Strands	36 AWG	28 AWG	100 ft	20424 Style UL	-55 °C	200 °C	Blue	Flat Cable	Fluorinated Ethylene-Propylene (FEP)	6	Unshielded	0.05 in		Blue	10 GOhm	Copper Silver Coated	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3601/14	300 V	0.029 in	7 Strands	36 AWG	28 AWG			-55 °C	200 °C	Blue	Flat Cable	Poly-Vinyl Chloride (PVC)	14	Unshielded	0.05 in	0.7 in	Blue	10 GOhm	Copper Silver Coated
