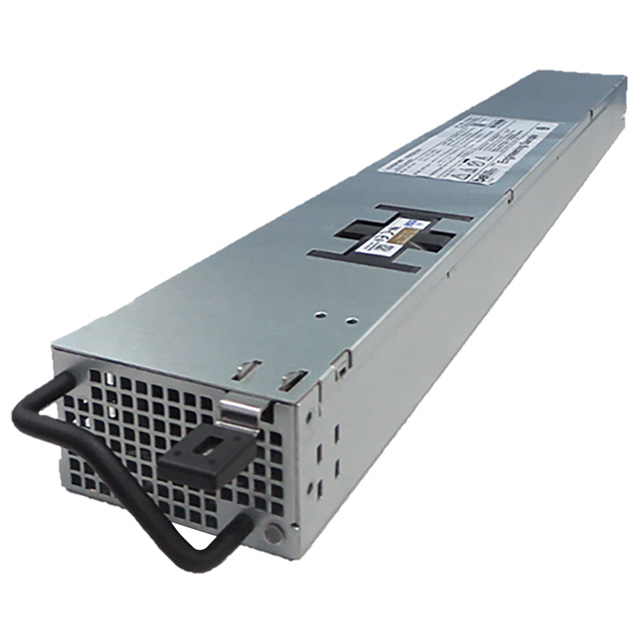

TET3600-48-069NA
ActiveBel Fuse Inc.
POWER SUPPLY;TET3600-48-069NA;AC
TET3600-48-069NA
ActiveBel Fuse Inc.
POWER SUPPLY;TET3600-48-069NA;AC
Description
General part information
TET3600-48-069NA
Front End AC DC Converters 1 Output 48V 90 ~ 305 VAC, 192 ~ 400 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TET3600-48-069NA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 75 A |
| Efficiency | 95.6 % |
| Features | PFC, DC Input Capable, I2C Interface, Load Sharing, Standby Output, Adjustable Output, Hot Swappable |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 3600 W |
| Size / Dimension Height | 1.57 in |
| Size / Dimension Length | 19.29 in |
| Size / Dimension Width | 2.68 in |
| Standard Number | 60950-1 |
| Type | Front End |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 400 V |
| Voltage - Input (DC) Minimum | 192 V |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Output 1 | 48 V |
