TCTU0J105K8R
ActiveKYOCERA AVX
TCT MN02 NAVY
TCTU0J105K8R
ActiveKYOCERA AVX
TCT MN02 NAVY
Description
General part information

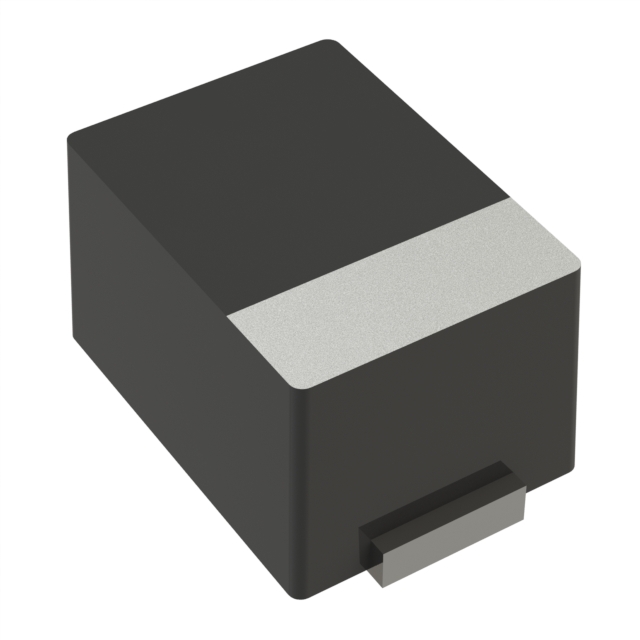

TCTU0J105K8R
1 µF Molded Tantalum Capacitors 6.3 V 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TCTU0J105K8R |
|---|---|
| Capacitance | 1 µF |
| Features | General Purpose |
| Height - Seated (Max) | 0.022 in |
| Manufacturer Size Code | U |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
