Description
General part information

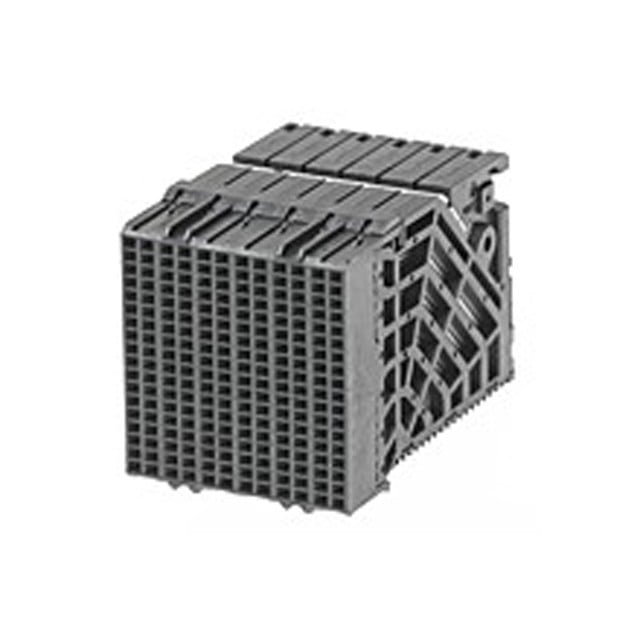

0762901012
IMPACT ORTHO 6X12 UNGUIDED DC 0.
Technical Specifications
Parameters and characteristics for this part
| Specification | 0762901012 |
|---|---|
| Color | Black |
| Connector Style | Impact |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | Backplane-to-Daughtercard |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Mounting Type | Through Hole, Right Angle |
| Number of Columns | 12 |
| Number of Positions | 216 |
| Number of Positions Loaded | All |
| Number of Rows | 18 |
| Pitch | 0.075 in |
| Termination | Press-Fit |
