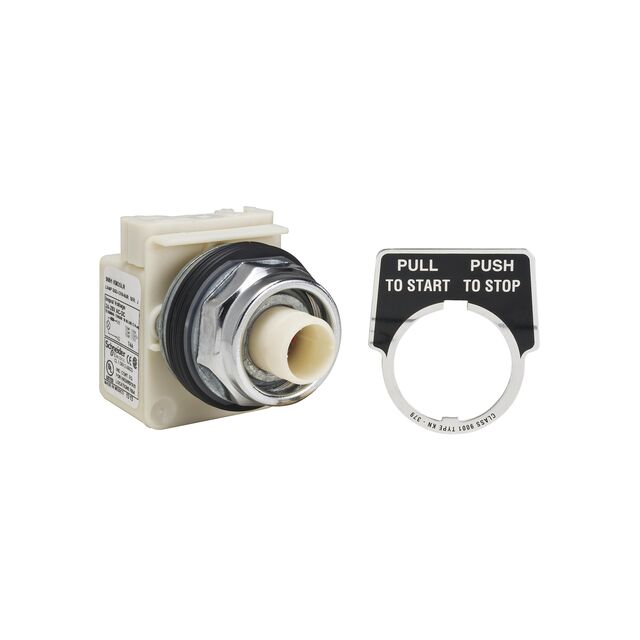

9001KR9P35LR
ActiveSCHNEIDER ELECTRIC
SWITCH ACTUATOR, SCHNEIDER HARMONY 9001K SERIES 30MM PUSHBUTTON SWITCHES
9001KR9P35LR
ActiveSCHNEIDER ELECTRIC
SWITCH ACTUATOR, SCHNEIDER HARMONY 9001K SERIES 30MM PUSHBUTTON SWITCHES
Description
General part information
9001KR9P35LR
Configurable Switch Body Pushbutton, Button (Not Included) Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KR9P35LR |
|---|---|
| Actuator Type | Button (Not Included), Pushbutton |
| Compatible Series | Harmony 9001K, Schneider |
| Illumination | Illuminated |
| Panel Cutout Dimension | 30 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary |
