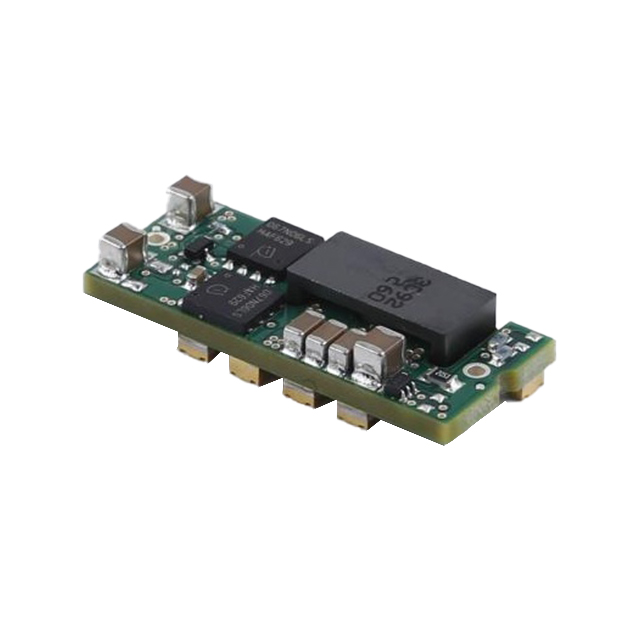

NAS2000N10S05

Active

NetPower

DC DC CONVERTER 3-6V

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 3-6V

Technical Specifications

Parameters and characteristics for this part

Specification	NAS2000N10S05

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	10 A
Efficiency	88 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	13.6 mm
Size / Dimension [y]	0.54 "
Size / Dimension [z]	0.26 "
Size / Dimension [z]	6.7 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Output 1 [Max]	6 V
Voltage - Output 1 [Min]	3 V

DC DC CONVERTER 3-6V

Part	Mounting Type	Control Features	Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]
NetPower NAS2000N10S05	Through Hole	Active Low, Enable	Non-Isolated PoL Module	3 V	6 V	36 V	Adjustable Output, Remote On/Off, Remote Sense	88 %	85 °C	-40 °C	ITE (Commercial)	9 V	1	13.6 mm	1.3 "	0.54 "	33 mm	0.26 "	6.7 mm	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 21.80

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3 ~ 6V 10A 9V - 36V Input
