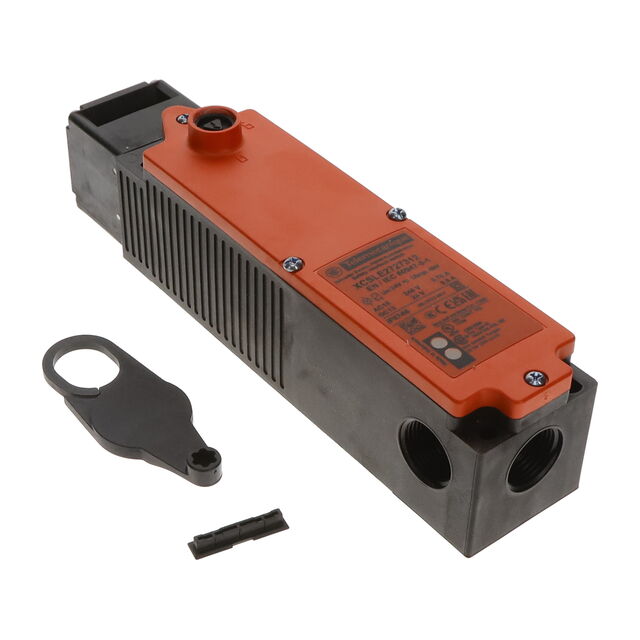

XCSLE2727312
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCSLE SERIES, DPST-NC, CABLE, 240 V, 750 MA, IP66, IP67
XCSLE2727312
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCSLE SERIES, DPST-NC, CABLE, 240 V, 750 MA, IP66, IP67
Description
General part information
XCSLE2727312
SAFETY INTERLOCK SWITCH, PREVENTA XCSLE SERIES, DPST-NC, CABLE, 240 V, 750 MA, IP66, IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSLE2727312 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | CSA, TUV, UL |
| Circuit | DPST-NC |
| Conduit Thread Diameter | 20 mm |
| Conduit Thread Pitch | 1.5 mm |
| Current Rating | 550 mA, 750 mA |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Cable Leads |
| Type | Key Locking |
| Voltage Rating (AC) | 240 VAC |
| Voltage Rating (DC) | 24 VDC |
