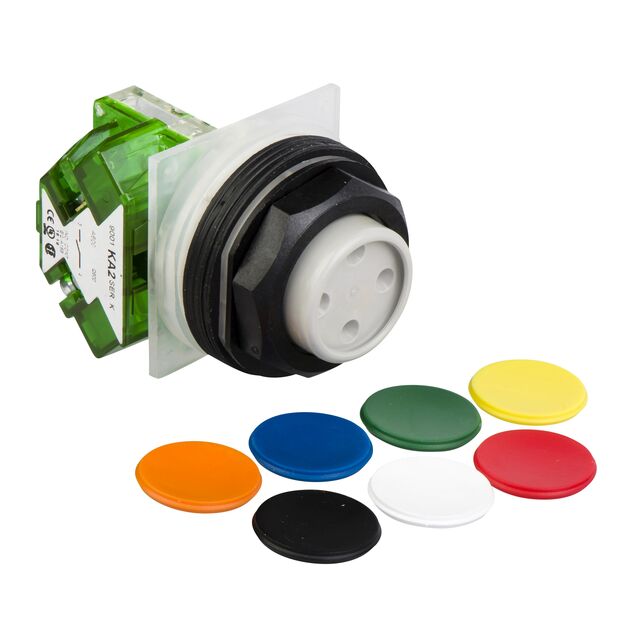

Specification	9001SKR3UH5

Actuator Type	Button, Round
Circuit	SPST-NO
Current Rating	550 mA, 3 A
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP66
Mechanical Life (Cycles)	5000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	30 mm
Panel Cutout Shape	Circular
Switch Function	Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	240 V
Voltage Rating - DC	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
