752085191APTR13
ActiveCTS Resistor Products

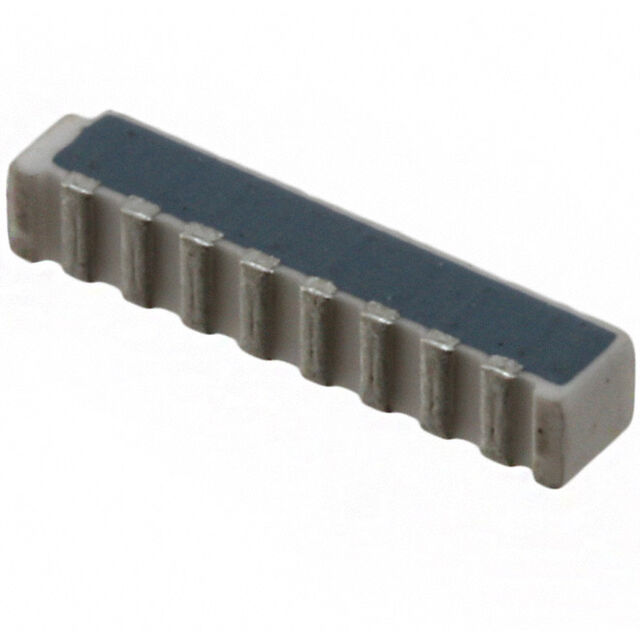

RES NTWRK 12 RES MULT OHM 8SRT
752085191APTR13
ActiveCTS Resistor Products
RES NTWRK 12 RES MULT OHM 8SRT
Description
General part information
752085191APTR13
330, 470 Ohm ±2% 80mW Power Per Element Dual Terminator 12 Resistor Network/Array ±200ppm/°C 8-SRT
Technical Specifications
Parameters and characteristics for this part
| Specification | 752085191APTR13 |
|---|---|
| Circuit Type | Dual Terminator |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 8-SRT |
| Power Per Element | 80 mW |
| Resistance | 470 Ohm, 330 Ohm |
| Size / Dimension Length | 0.465 in |
| Size / Dimension Width | 0.08 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
