TLF9UB802WK1
ObsoleteTaiyo Yuden
CMC 300MA 2LN 40K OHM TH
TLF9UB802WK1
ObsoleteTaiyo Yuden
CMC 300MA 2LN 40K OHM TH
Description
General part information
TLF9UB802WK1

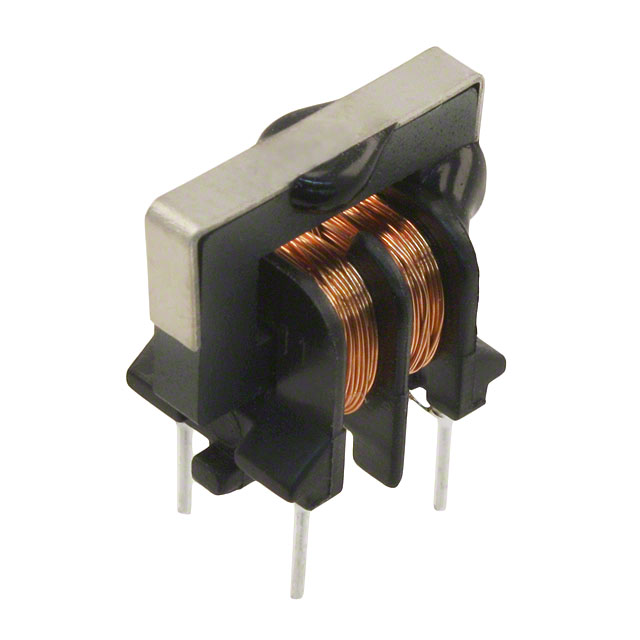

2 Line Common Mode Choke Through Hole 40 kOhms @ 700 kHz 300mA DCR 3Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | TLF9UB802WK1 |
|---|---|
| Current Rating (Max) | 300 mA |
| DC Resistance (DCR) (Max) | 3 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.63 in |
| Impedance | 40 kOhms |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.669 in |
| Size / Dimension Width | 0.433 in |
| Voltage Rating - DC | 50 V |
