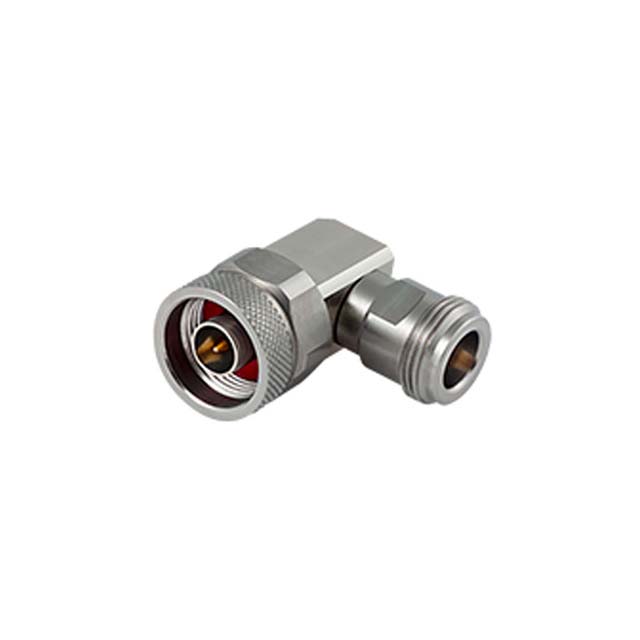

Specification	NF-NMR50-18+

Adapter Series	N to N
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	N Jack
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Insertion Loss	0.12 dB
Mounting Type	Right Angle, Free Hanging (In-Line)
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Style	Right Angle

- Series

...

Part	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Adapter Type	Mounting Type	Conversion Type	Impedance	Fastening Type	Adapter Series	Frequency - Max	Convert From (Adapter End)	Style	Center Gender	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Convert From (Adapter End) Plug Size	Convert From (Adapter End) Type	Adapter Series Size	Convert From (Adapter End) Jack Size	Mounting Feature	Convert To (Adapter End) Size	Convert To (Adapter End) Model	Convert To (Adapter End)	Power (Watts)	Frequency Range (Min)	Frequency Range (Max)	Attenuation Value	Package / Case	Insertion Loss	Convert To (Adapter End) Precision	Convert To (Adapter End) Series
Mini-Circuits BLK-18-S+	Stainless Steel	-55 °C	100 °C	Plug to Jack	Free Hanging (In-Line)	Same Series	50 Ohm	Threaded	SMA to SMA	18 GHz	Male Pin SMA Plug	Straight	Female Male	Female Socket	SMA Jack
Mini-Circuits NM-SF50+	Stainless Steel	-55 °C	100 °C	Plug to Jack	Free Hanging (In-Line)	Between Series	50 Ohm	Threaded	SMA to N	18 GHz	Male Pin N Plug	Straight	Female Male	Female Socket	SMA Jack
Mini-Circuits SF-35M50+	Stainless Steel	-55 °C	85 °C	Plug to Jack	Free Hanging (In-Line)	Between Series	50 Ohm	Threaded	SMA	26.5 GHz		Straight	Female Male	Female Socket	SMA Jack	3.5 mm	Male Pin	3.5 mm
Mini-Circuits 24B-KB+	Stainless Steel	-55 °C	100 °C	Jack to Jack	Panel Mount	Between Series	50 Ohm	Threaded		40 Gbps		Straight	Female	Female Socket	Jack		APC-2.4 Female Socket OS-50	2.4 mm 2.92 mm	2.4 mm	Bulkhead	2.92 mm	OS-2.9	Female Socket Jack
Mini-Circuits GAT-6+							50 Ohm																	500 mW	0 Hz	8 GHz	6 dB	4-SMD No Lead
Mini-Circuits KM-KM50+	Stainless Steel	-55 °C	100 °C	Plug to Plug	Free Hanging (In-Line)	Same Series	50 Ohm	Threaded		40 Gbps		Straight	Male		Male Pin Plug	2.92 mm	(OS-2.9) Plug Male Pin	2.92 mm			2.92 mm	OS-2.9	(OS-2.9) Plug Male Pin Plug						0.13 dB	2.92 mm
Mini-Circuits BLK-222+		-55 °C	100 °C	Plug to Jack	Free Hanging (In-Line)	Same Series	50 Ohm	Bayonet Lock	BNC to BNC	2.2 GHz	BNC Plug Male Pin	Straight	Female Male	Female Socket	BNC Jack
Mini-Circuits GAT-15+							50 Ohm																	500 mW	0 Hz	8 GHz	15 dB	4-SMD No Lead
Mini-Circuits 185F-KM+	Stainless Steel	-55 °C	100 °C	Plug to Jack	Free Hanging (In-Line)	Between Series	50 Ohm	Threaded		40 Gbps		Straight	Female Male		Male Pin Plug		Female Socket	1.85 mm 2.92 mm	1.85 mm		2.92 mm	OS-2.9	(OS-2.9) Plug Male Pin Plug						0.11 dB	2.92 mm
Mini-Circuits 24F-24F+	Stainless Steel	-55 °C	100 °C	Jack to Jack	Free Hanging (In-Line)	Same Series	50 Ohm	Threaded		50 GHz		Straight	Female	Female Socket	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack		APC-2.4 Female Socket OS-50	2.4 mm	2.4 mm		2.4 mm	APC-2.4 OS-50	Female Socket Jack						0.14 dB		APC-2.4 OS-50
