20-101-0454
ObsoleteDigi International
IC MOD RABBIT 2000 22.1MHZ 128KB
20-101-0454
ObsoleteDigi International
IC MOD RABBIT 2000 22.1MHZ 128KB
Description
General part information
20-101-0454

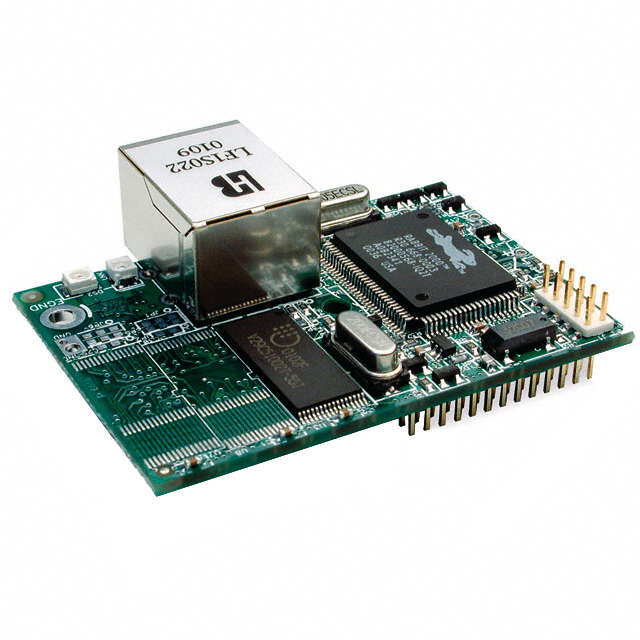

RabbitCore RCM2200 Embedded Module Rabbit 2000 22.1MHz 128KB 256KB
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-101-0454 |
|---|---|
| Connector Pin Count | 2 |
| Connector Pins per Row | 13 |
| Connector Rows | 2 |
| Connector Type | 2 IDC Headers, IDC Headers, IDC Header 2x13 |
| Core Processor | Rabbit 2000 |
| Flash Size | 256 KB |
| Module/Board Type | MPU Core |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Size | 128 KB |
| Size / Dimension Length | 1.6 in |
| Size / Dimension Width | 2.3 in |
| Speed | 22.1 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
