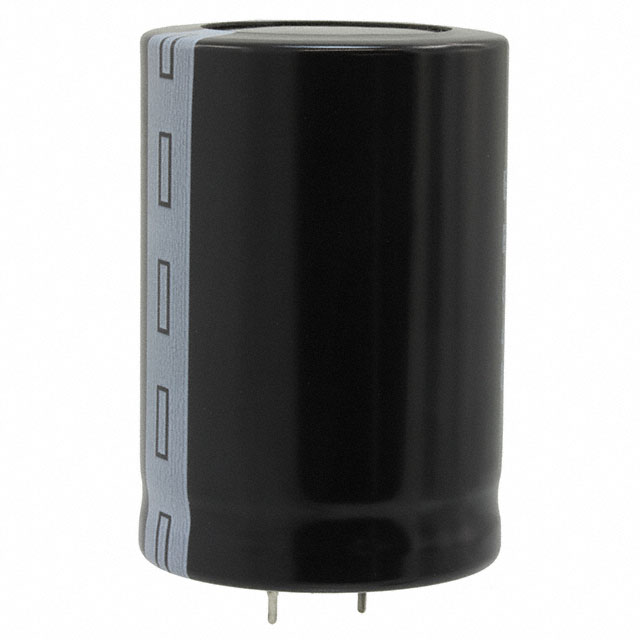

Specification	B43508A9827M000

Applications	General Purpose
Capacitance	820 µF
ESR (Equivalent Series Resistance)	150 mOhm
Height - Seated (Max)	2.047 in
Impedance	210 mOhm
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	2.33 A, 2.33 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	400 V
