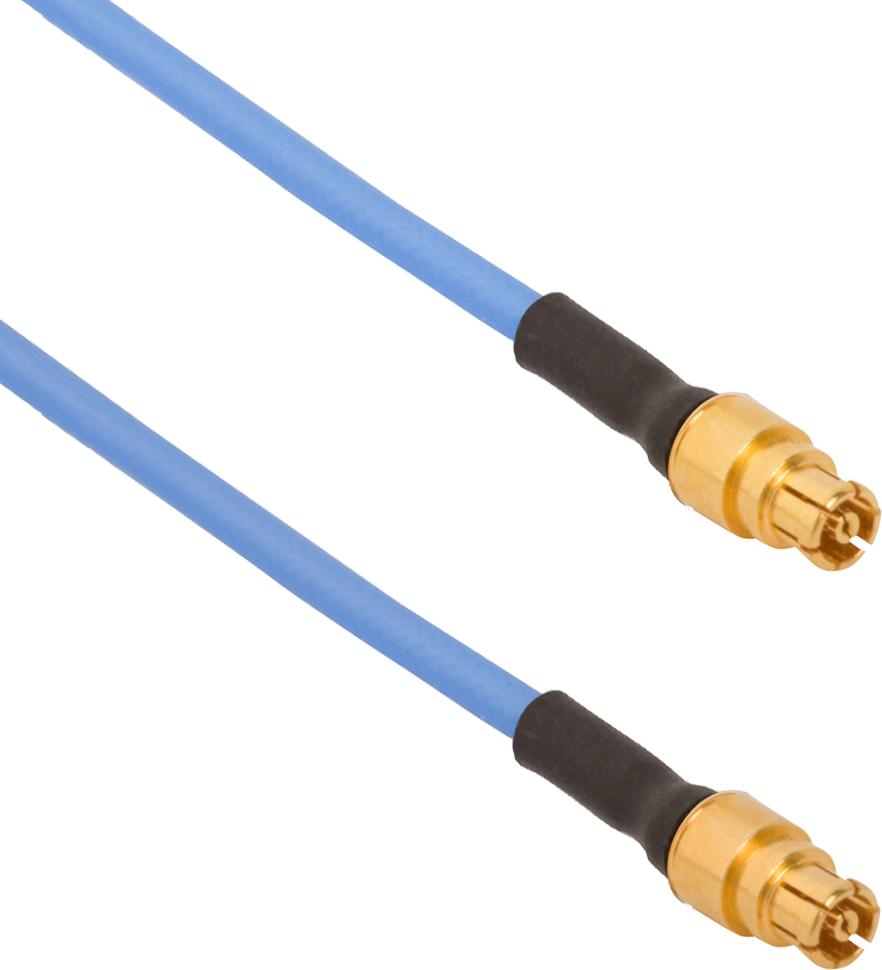

Specification	7032-6351

1st Connector	SMPM Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMPM Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Diameter	0.047 "
Cable Outer Diameter	0.047 "
Cable Type	Flexible Cable
Cable Type Size	0.047, 0.047 "
Color	Blue
Features	Shielded
Frequency - Max	40 Gbps
Length	0.5 ft
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	SMPM

7032 Series

Part	2nd Connector	Operating Temperature (Min)	Operating Temperature (Max)	Length	Frequency - Max	Color	Overall Impedance	1st Contact Gender	1st Connector	Features	1st Connector Mounting Type	Style	2nd Connector Mounting Type	Cable Type Size	Cable Type	2nd Contact Gender	2nd Connector Diameter	Cable Diameter	Cable Outer Diameter
McGill Microwave Systems 7032-6729-060	SMA Plug	-65 °C	165 °C	0.5 ft	26.5 GHz	Blue	50 Ohms	Female	SMPM Jack	Shielded	Free Hanging (In-Line)	SMA SMPM	Free Hanging (In-Line)	405	TFlex	Male
McGill Microwave Systems 7032-6757	Plug	-65 °C	165 °C	0.5 ft	40 Gbps	Blue	50 Ohms	Female	SMPM Jack	Shielded	Free Hanging (In-Line)	SMPM to 2.92mm	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	Male	2.92 mm	0.047 "	0.047 "
McGill Microwave Systems 7032-6758	Plug	-65 °C	165 °C	12 in	40 Gbps	Blue	50 Ohms	Female	SMPM Jack	Shielded	Free Hanging (In-Line)	SMPM to 2.92mm	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	Male	2.92 mm	0.047 "	0.047 "
McGill Microwave Systems 7032-7161	Plug	-65 °C	165 °C	24 in	40 Gbps	Blue	50 Ohms	Female	SMP Jack	Shielded	Free Hanging (In-Line)	SMP to 2.92mm	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	Male	2.92 mm	0.047 "	0.047 "
McGill Microwave Systems 7032-6353	SMPM Jack	-65 °C	165 °C	24 in	40 Gbps	Blue	50 Ohms	Female	SMPM Jack	Shielded	Free Hanging (In-Line)	SMPM	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	Female		0.047 "	0.047 "
McGill Microwave Systems 7032-6355	Right Angle SMPM Jack	-65 °C	165 °C	12 in	40 Gbps	Blue	50 Ohms	Female	Right Angle SMPM Jack	Shielded	Free Hanging (In-Line)	SMPM	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	Female		0.047 "	0.047 "
McGill Microwave Systems 7032-7525	SMA Plug	-65 °C	165 °C	12 in	18 GHz	Blue	50 Ohms	Female	SMPM Jack	Shielded	Free Hanging (In-Line)	SMA SMPM	Free Hanging (In-Line)	0.047 0.047 "	Flexible Cable	Male		0.047 "	0.047 "
McGill Microwave Systems 7032-7240	Right Angle SMA Plug	-65 °C	165 °C	0.5 ft	18 GHz	Blue	50 Ohms	Female	Right Angle SMPM Jack	Shielded	Free Hanging (In-Line)	SMA SMPM	Free Hanging (In-Line)	405	TFlex	Male
McGill Microwave Systems 7032-7434-120	SMA Plug	-65 °C	165 °C	12 in	18 GHz	Blue	50 Ohms	Female	SMPM Jack	Shielded	Free Hanging (In-Line)	SMA SMPM	Free Hanging (In-Line)	405	TFlex	Male
McGill Microwave Systems 7032-7241	Right Angle SMA Plug	-65 °C	165 °C	12 in	18 GHz	Blue	50 Ohms	Female	Right Angle SMPM Jack	Shielded	Free Hanging (In-Line)	SMA SMPM	Free Hanging (In-Line)	405	TFlex	Male
