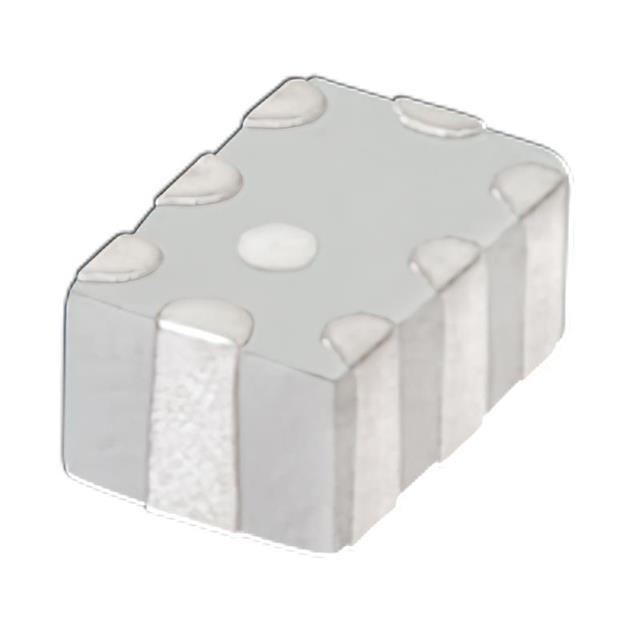

LFCG-2275+
ActiveMini-Circuits
RF FILTER LOW PASS 2.7GHZ 0805
LFCG-2275+
ActiveMini-Circuits
RF FILTER LOW PASS 2.7GHZ 0805
Description
General part information
LFCG-2275+
2.7GHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 2dB 0805 (2012 Metric), 8 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | LFCG-2275+ |
|---|---|
| Filter Type | Low Pass |
| Frequency | 2.7 GHz |
| Height (Max) | 0.042 in |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 8 PC Pad |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
